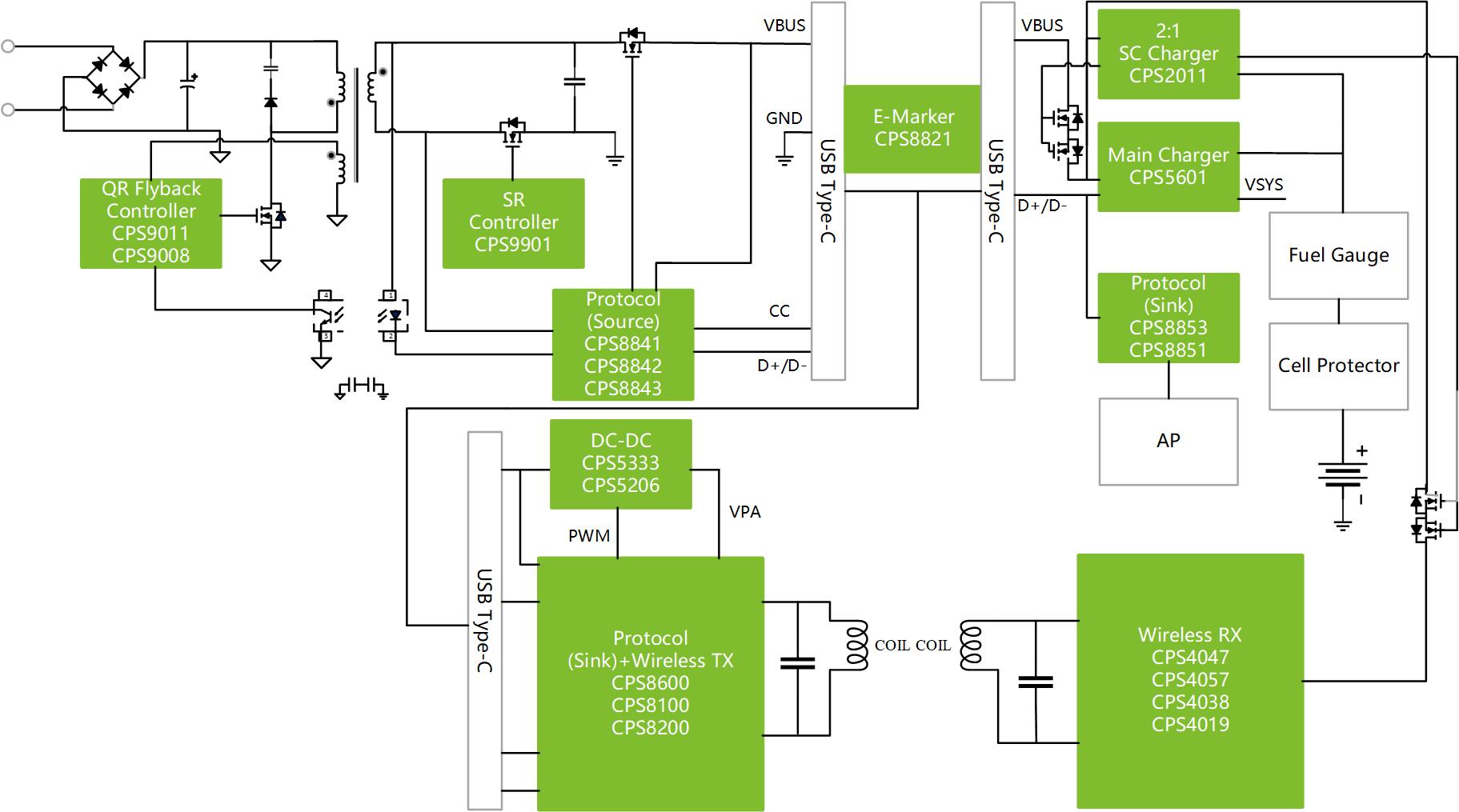

ConvenientPower Accessories power management application designs help to build better power solutions.
Wireless Power Transmitter
Part Number Description Related Products
CPS8100 CPS8100 is a highly efficient, Qi-compliant, magnetic inductive wireless power transmitter IC with wide input voltage range of 3.9V to 26V. It supports secure bi-directional communication with wireless power receiver (ASK/FSK), flexible communication interface ports, as well as reliable over-voltage/current/temperature protection schemes. Wireless Charging > Wireless Power Transmitter
CPS8200 CPS8200 is a highly efficient, Qi-compliant, magnetic inductive wireless power transmitter IC with wide voltage range of 3.9V to 24V (26V max) for VIN, 2V to 45V (50V max) for power stage. It supports secure bi-directional communication with wireless power receiver (ASK/FSK), flexible communication interface ports, as well as reliable over-voltage/current/temperature protection schemes. Wireless Charging > Wireless Power Transmitter
CPS8600 CPS8600 is a highly efficient, Qi-compliant, magnetic inductive wireless power transmitter IC with wide input voltage range of 3.3V to 24V for VIN, 2V to 14V for power stage. It supports secure communication with wireless power receiver (ASK), fixed communication interface ports, as well as reliable over-voltage/current/temperature protection schemes Wireless Charging > Wireless Power Transmitter
Wireless Power Receiver
Part Number Description Related Products
CPS4047 The CPS4047 is a highly efficient, Qi-compliant, single-chip wireless power receiver/transmitter IC. It supports up-to 40W applications at receiver (Rx) mode and up-to 10W at transmitter (Tx) mode, which is particularly suitable for cell phone and portable device applications. Wireless Charging > Wireless Power Receiver
CPS4057 The CPS4057 is a highly efficient, Qi-compliant, single-chip wireless power receiver/transmitter IC. It supports up-to 50W applications under receiver (Rx) mode and up-to 10W under transmitter (Tx) mode, which is particularly suitable for cell phone and portable device applications. Wireless Charging > Wireless Power Receiver
CPS4038 The CPS4038 is a wireless power receiver compliant with WPC V1.3 standard. The R CPS4038 integrates a synchronous full-bridge rectifier, a low dropout regulator, and a Micro Controller Unit (MCU) for control and communication. The device receives AC power from a WPC compatible wireless transmitter and provides output power up to 40W, which could be used as a power supply for a charger of mobile or consumer devices. Wireless Charging > Wireless Power Receiver
CPS4019 The CPS4019 is a highly efficient, Qi-compliant, single-chip wireless power receiver IC. It supports up to 5W applications in the receiver (Rx) mode. The device receives AC power from a wireless power transmitter (Tx) and converts it into a rectified output voltage. As a wireless power Rx, it integrates a synchronous rectifier and a low drop-out regulator to provide power to system load or battery. Modulation and control circuits are used for bi-directional in-band communication to the Tx. Wireless Charging > Wireless Power Receiver
Protocol
Part Number Description Related Products
CPS8841 The CPS8841 is a highly integrated USB Power Delivery 3.0 controller with Programmable Power Supply (PPS). It also supports multiple fast charging protocols as BC1.2, QC2.0, QC3.0, SCP, UFCS etc. USB Type-C and PD Protocols > Source controllers
CPS8842 CPS8842 is a highly integrated fast charge protocol source controller that supports below DP/DN charging protocols: - BC1.2 DCP - QC2.0/QC3.0 - SCP A and B Class - UFCS CPS8842 integrates constant-voltage loop (CV) and low side constant-current loop (CC) with programmable reference voltage to meet the UFCS. The CPS8842 is available in a RoHS, halogen-free,lead-free 12- pin 3mm x 3mm DFN package. USB Type-C and PD Protocols > Source controllers
CPS8843 CPS8843 is a highly integrated fast charge protocol source controller that supports charging protocols: - BC1.2 DCP - QC2.0/QC3.0 - SCP A and B Class - UFCS - PD3.1 with PPS CPS8843 integrates constant-voltage loop (CV) and High side constant-current loop (CC) with programmable reference voltage to meet the UFCS and USB PD PPS specification. USB Type-C and PD Protocols > Source controllers
CPS8851 The CPS8851 is an USB Type-C controller with Power delivery that complies with the physical layer and implements the Type-C port power control for VCONN, Type-C CC control, sensing and PD message delivery. USB Type-C and PD Protocols > Sink and DRP
CPS8853 The CPS8853 is a USB A controller that complies with UFCS standard. The CPS8853 integrates a complete DP/DM PHY which supports the customized fast-charging protocol for power input. USB Type-C and PD Protocols > Sink and DRP
E-Marker
Part Number Description Related Products
CPS8821A This chip is an electronic marker for USB Type-C passive cables with extremely low BOM cost, which makes the cable connectors compact. This chip supports structured VDM Discover Identity Command directed to SOP’, which provides a method to determine the characteristics of cables, e.g. current-carrying capability, performance and vendor identification. Being compliant to PD3.0 V2.0, this chip also supports extended message Get_Manufacture_Info and will respond by returning a Manufacture_Info message containing manufacturer info data block (MIDB). Customized data can be stored in the MTP and in-cable programmed through CC PIN. USB Type-C and PD Protocols > E-marker
CPS8821B This chip is an electronic marker for USB Type-C passive cables with extremely low BOM cost, which makes the cable connectors compact. This chip supports structured VDM Discover Identity Command directed to SOP’, which provides a method to determine the characteristics of cables, e.g. current-carrying capability, performance and vendor identification. Being compliant to PD3.0 V2.0, this chip also supports extended message Get_Manufacture_Info and will respond by returning a Manufacture_Info message containing manufacturer info data block (MIDB). Customized data can be stored in the MTP and in-cable programmed through CC PIN. USB Type-C and PD Protocols > E-marker
CPS8821C This chip is an electronic marker for USB Type-C passive cables with extremely low BOM cost, which makes the cable connectors compact. This chip supports structured VDM Discover Identity Command directed to SOP’, which provides a method to determine the characteristics of cables, e.g. current-carrying capability, performance and vendor identification. Being compliant to PD3.0 V2.0, this chip also supports extended message Get_Manufacture_Info and will respond by returning a Manufacture_Info message containing manufacturer info data block (MIDB). Customized data can be stored in the MTP and in-cable programmed through CC PIN. USB Type-C and PD Protocols > E-marker
CPS8821D This chip is an electronic marker for USB Type-C passive cables with extremely low BOM cost, which makes the cable connectors compact. This chip supports structured VDM Discover Identity Command directed to SOP’, which provides a method to determine the characteristics of cables, e.g. current-carrying capability, performance and vendor identification. Being compliant to PD3.0 V2.0, this chip also supports extended message Get_Manufacture_Info and will respond by returning a Manufacture_Info message containing manufacturer info data block (MIDB). Customized data can be stored in the MTP and in-cable programmed through CC PIN. USB Type-C and PD Protocols > E-marker
CPS8821F The CPS8821F is an electronically marked ID for both passive and active full-feature USB Type-C cables. This IC supports structured VDM Discover Identity Command directed to SOP’ and SOP’’, which provides a method to determine the characteristics of the cable, i.e. current-carrying capability, vendor identification, USB signal transmission speed, etc USB Type-C and PD Protocols > E-marker
CPS8821G The CPS8821F is an electronically marked ID for both passive and active full-feature USB Type-C cables. This IC supports structured VDM Discover Identity Command directed to SOP’ and SOP’’, which provides a method to determine the characteristics of the cable, i.e. current-carrying capability, vendor identification, USB signal transmission speed, etc USB Type-C and PD Protocols > E-marker
DC-DC
Part Number Description Related Products
CPS5333 The CPS5333 is a high efficiency, 750 kHz switch frequency, synchronous step-down DC-DC converter with delivering 3A current capability. The CPS5333 operates over a wide input voltage range from 4.5V to 30V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. DC/DC Switching Regulators > Step-Down (buck) Regulators
AC-DC
Part Number Description Related Products
CPS9011 CPS9011X is an advanced PWM controller designed for high power density universal input offline flyback controllers. CPS9011X can work at QR mode at high line and CCM at low line. The CPS9011X also incorporates a proprietary valley-lockout circuitry and the valley-lockout number can be chosen by customer AC-DC > Flyback Controllers
CPS9008 AC-DC > Flyback Controllers
Charger
Part Number Description Related Products
CPS2011 CPS2011 is a single-cell 7A high efficiency dualphase switched capacitor charger. It integrated Universal Fast Charging Specification for Mobile Devices (UFCS PHY). It supports up to 12V input voltage, and operates in following 2 modes: Forward 2:1 (up to 7A IOUT), Forward 1:1 (bypass, up to 5A IOUT) The switched capacitor architecture optimized for 50% duty cycle. The input Voltage is 2x of battery voltage and the output current is 2x of VBUS input current, which effectively reduces power loss across the input cable. Battery Charger > Switched Capacitor Charger
