CPS8200
Application
Charging Pad
Smart Phone
MP3 Player
Blue Tooth
Tablets
Accessories
CPS8200 is a highly efficient, Qi-compliant, magnetic inductive Wireless Power Transmitter IC with wide voltage range of 3.9V to 24V (26V max) for VIN, 2V to 45V (50V max) for power stage. It supports secure Bi-directional communication with Wireless Power Receiver (ASK/FSK), flexible communication interface ports, as well as reliable Over-Voltage/Current/Temperature Protection schemes.
| Part Number | CPS8200 | |
|---|---|---|
| VIN Max（V） | 24 | |
| VPA Max (V) | 45 | |
| USB-PD | supported | |
| Q-Factor | Internal | |
| Power Inverter | 4x external FETs | |
| DC-DC Stage (For Fixed Freq.) | buck/boost/byp ctrl.,+ext.FETs | |
| Core | 32-bit | |
| Memory | 66k MTP/32k ROM/16k SRAM | |

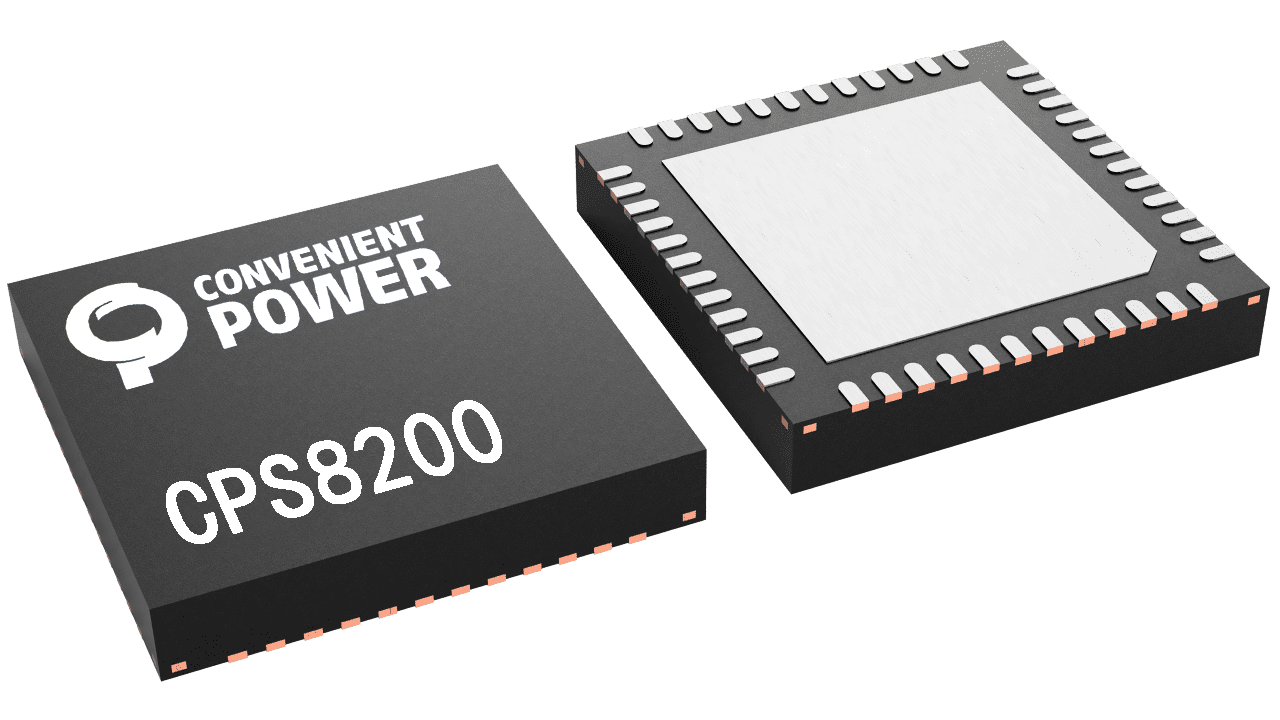

| Package | QFN-48 | |
WPC Qi 2.0 compliant wireless power transmitter
Integrated MTP core,ROM, SRAM
Support update MTP through CC or DP/DN line
Integrated 2x I2C interface, 2x UART interface
Flexible adaptor support: QC2.0/QC3.0/PD3.0/SCP/AFC
Flexible output power with external MOSFET
Integrated 3 pairs half bridge driver
Integrated Buck or Boost controller
Support double Rx charging application
Integrated external crystal driver
Low Power Mode
Over Voltage/Current/Temperature Protection
RoHS Compliant, Halogen-Free and Lead-Free
