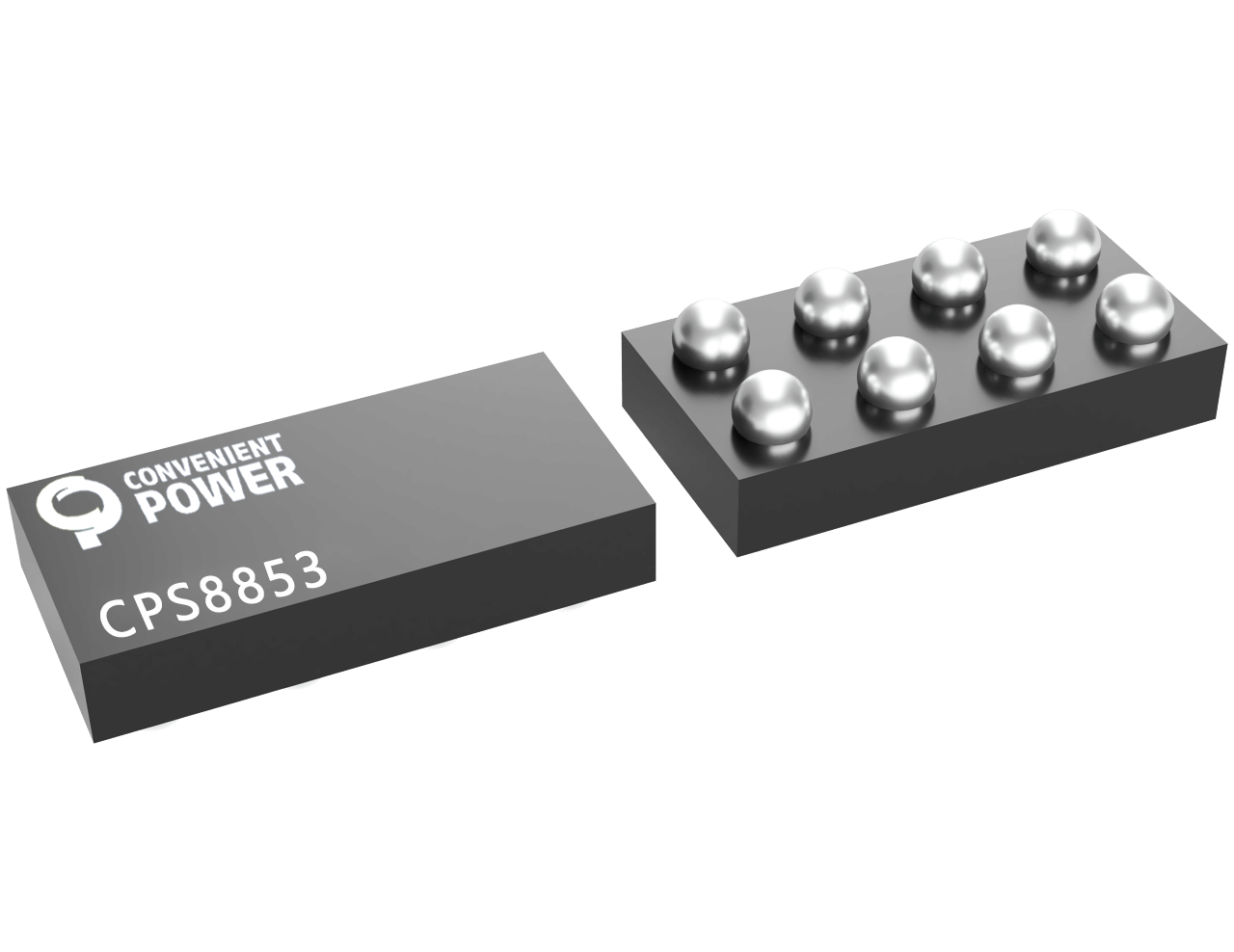

CPS8853

Application

Cellphones

The CPS8853 is a USB A controller that complies with UFCS standard. The CPS8853 integrates a complete DP/DM PHY which supports the

customized fast-charging protocol for power input.

Key Spec. & Features
Key Spec.
Part Number CPS8853
Port Type A
CC1/2 DP/DN Voltage 6V
CC/CV loop ×
Load Switch ×
Current Sense ×
VCONN Power ×
Feedback ×
Protocols UFCS PHY with I2C interface
Package WLCSP-8
Features

Input power supply 3V to 3.6V

6V tolerance on DP/DM pins

Support UFCS protocol

Support 1.8V/1.2V I2C interface to AP

Integrated MCU core, SRAM and Flash

Support I2C update firmware

Watchdog. On-chip over-temperature warning

RoHS, Halogen-Free and Lead-Free
