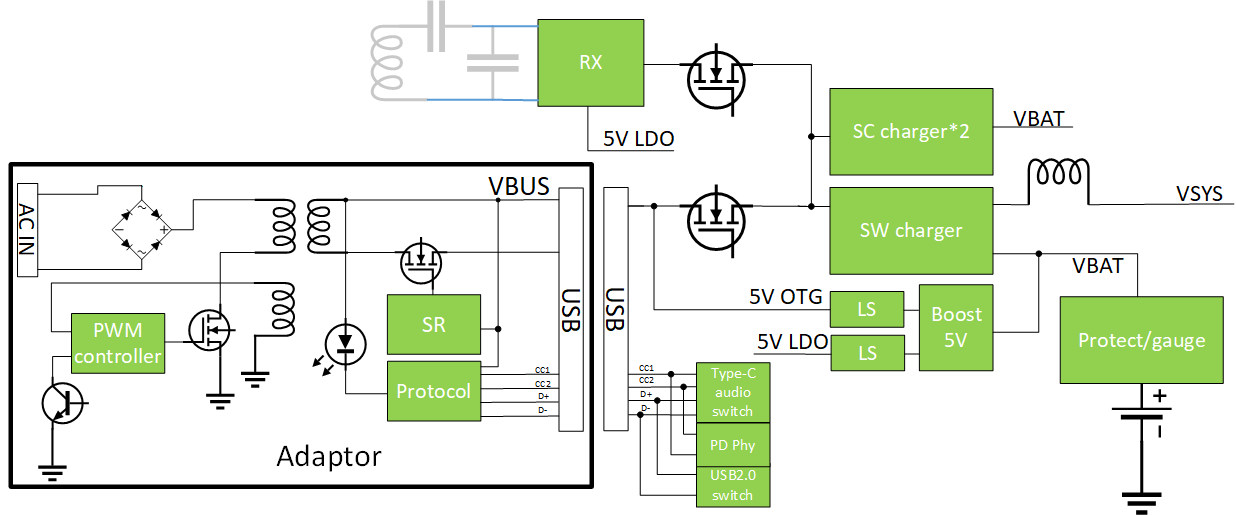

ConvenientPower Consumer Electronics power management application designs help to build better power solutions.
Wireless Power Receiver
Part Number Description Related Products
CPS4057 The CPS4057 is a highly efficient, Qi-compliant, single-chip wireless power receiver/transmitter IC. It supports up-to 50W applications under receiver (Rx) mode and up-to 10W under transmitter (Tx) mode, which is particularly suitable for cell phone and portable device applications. Wireless Charging > Wireless Power Receiver
Protocol
Part Number Description Related Products
CPS8841 The CPS8841 is a highly integrated USB Power Delivery 3.0 controller with Programmable Power Supply (PPS). It also supports multiple fast charging protocols as BC1.2, QC2.0, QC3.0, SCP, UFCS etc. USB Type-C and PD Protocols > Source controllers
Charger
Part Number Description Related Products
CPS2021 CPS2021 is a single-cell 7A high efficiency dualphase switched capacitor charger. It integrated fast charging protocol (SCP PHY) and Universal Fast Charging Specification for Mobile Devices (UFCS PHY). It supports up to 12V input voltage, and operates in following 2 modes: Forward 2:1 (up to 7A IOUT),Forward 1:1 (bypass, up to 5A IOUT). The switched capacitor architecture optimized for 50% duty cycle. The input Voltage is 2x of battery voltage and the output current is 2x of VBUS input current, which effectively reduces power loss across the input cable. Battery Charger > Switched Capacitor Charger
AC-DC
Part Number Description Related Products
CPS9001 The CPS9001 is an advanced PWM controller designed for high power density universal input offline flyback controllers. CPS9001 incorporates Auxiliary Zero-Voltage Switching (AZVS) control to reduce switching losses on the main switch and increase the system efficiency. AC-DC > Flyback Controllers
CPS9901 The CPS9901 is a secondary-side synchronous rectifier (SR) controller for an isolated flyback converter operating in Discontinuous Conduction Mode (DCM) and Continuous Conduction Mode (CCM). AC-DC > SR Controllers
