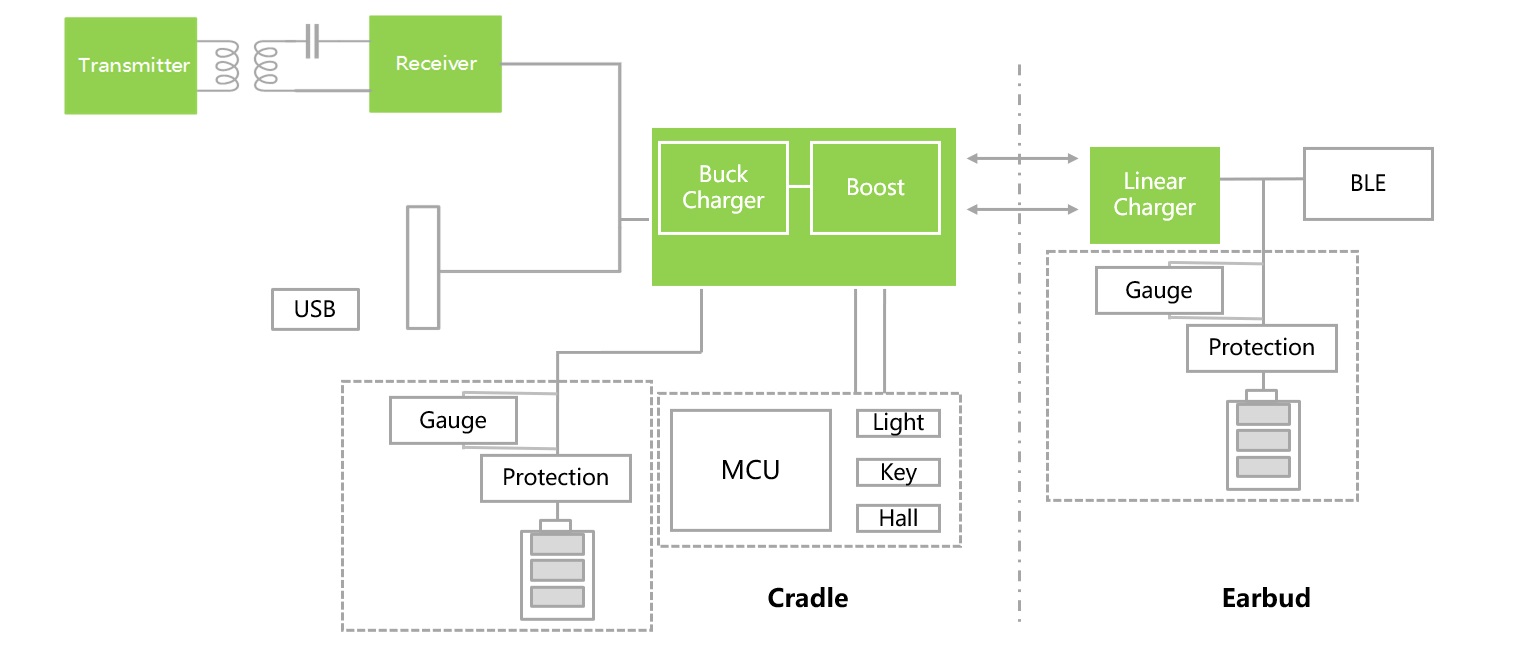

ConvenientPower Accessories power management application designs help to build better power solutions.
Wireless Power Transmitter
Part Number Description Related Products
CPS8600 CPS8600 is a highly efficient, Qi-compliant, magnetic inductive wireless power transmitter IC with wide input voltage range of 3.3V to 24V for VIN, 2V to 14V for power stage. It supports secure communication with wireless power receiver (ASK), fixed communication interface ports, as well as reliable over-voltage/current/temperature protection schemes Wireless Charging > Wireless Power Transmitter
Wireless Power Receiver
Part Number Description Related Products
CPS4019 The CPS4019 is a highly efficient, Qi-compliant, single-chip wireless power receiver IC. It supports up to 5W applications in the receiver (Rx) mode. The device receives AC power from a wireless power transmitter (Tx) and converts it into a rectified output voltage. As a wireless power Rx, it integrates a synchronous rectifier and a low drop-out regulator to provide power to system load or battery. Modulation and control circuits are used for bi-directional in-band communication to the Tx. Wireless Charging > Wireless Power Receiver
CPS5211 The CPS5211 is a highly integrated single-chip PMIC for VBUS and wireless receiver, switching charger plus boost circuitry. CPS5211 will auto judge the input source to select VBUS or wireless charging. Its input has 15V tolerance to enhance the input voltage robust likes VBUS plug-in. The switching charger can support maximum 1A charging current to decrease the charge time. The boost can support 5V/0.5A output. Battery Charger > Switching Charger
Charger
Part Number Description Related Products
CPS5201 The CPS5201 is a highly integrated single-chip PMIC include an OVP, a switching charger and boost circuitry. Its input has 30V tolerance to enhance the input voltage robust likes VBUS plug-in. The switching charger can support maximum 1A charging current to decrease the charge time. The boost can support 5V/0.5A output Battery Charger > Switching Charger
