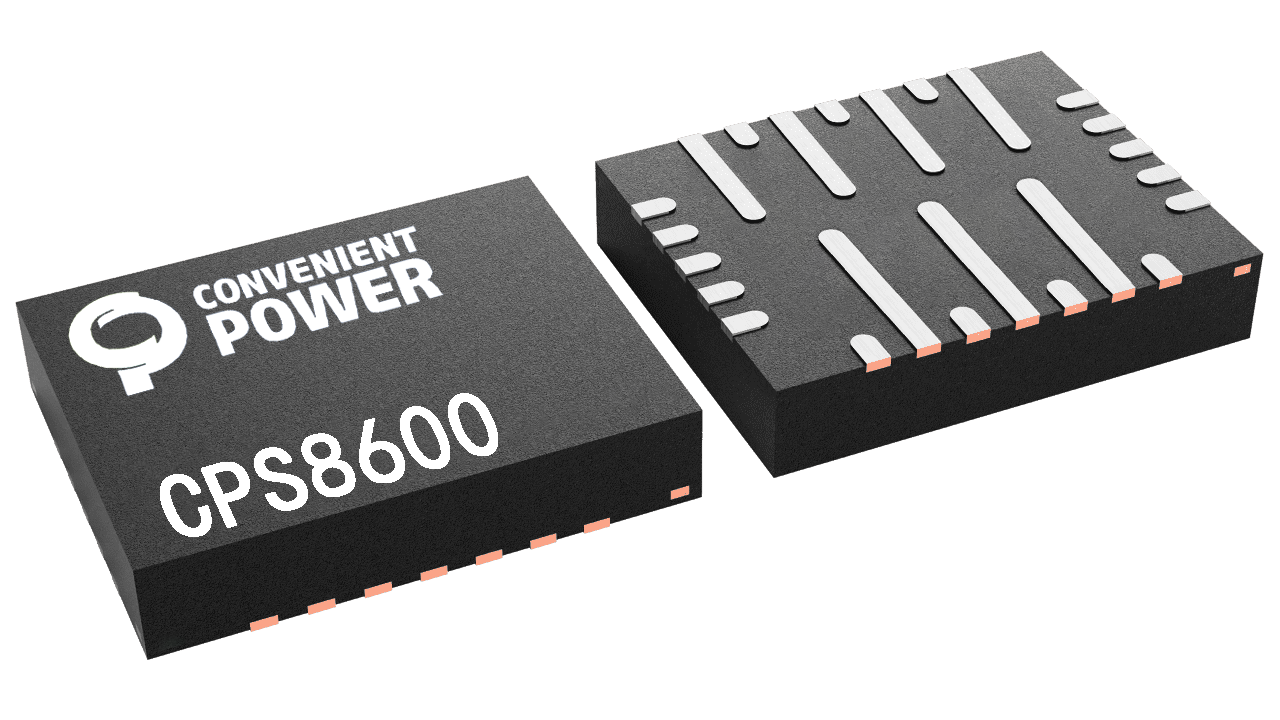

CPS8600 is a highly efficient, Qi-compliant, magnetic inductive Wireless Power Transmitter IC with wide input voltage range of 3.3V to 24V for VIN, 2V to 14V for power stage. It supports Secure Communication with Wireless Power Receiver (ASK), fixed communication interface ports, as well as reliable Over-Voltage/Current/Temperature Protection schemes.

Key Spec. & Features
Key Spec.
Part Number CPS8600
VIN Max(V) 24
VPA Max (V) 14
USB-PD supported
Q-Factor Internal
Power Inverter Internal DrMOS 15mΩ
DC-DC Stage (For Fixed Freq.) -
Core 8-bit
Memory 32k OTP
Package FC-QFN

WPC 1.3 compliant wireless power transmitter

Integrated core, RAM

High-speed Architecture, 8MHz - 24MHz in standard mode, 48MHz for PWM module

Low Rdson HS/LS: 15mΩ Type

Support dead time adjustment

Voltage and Current demodulation

Support I2C interface, 2x UART interface

Support SPI interface & XIP

Support shutdown and Low Power Mode

Over Voltage/Current/Temperature Protection

RoHS Compliant, Halogen-Free and Lead-Free
