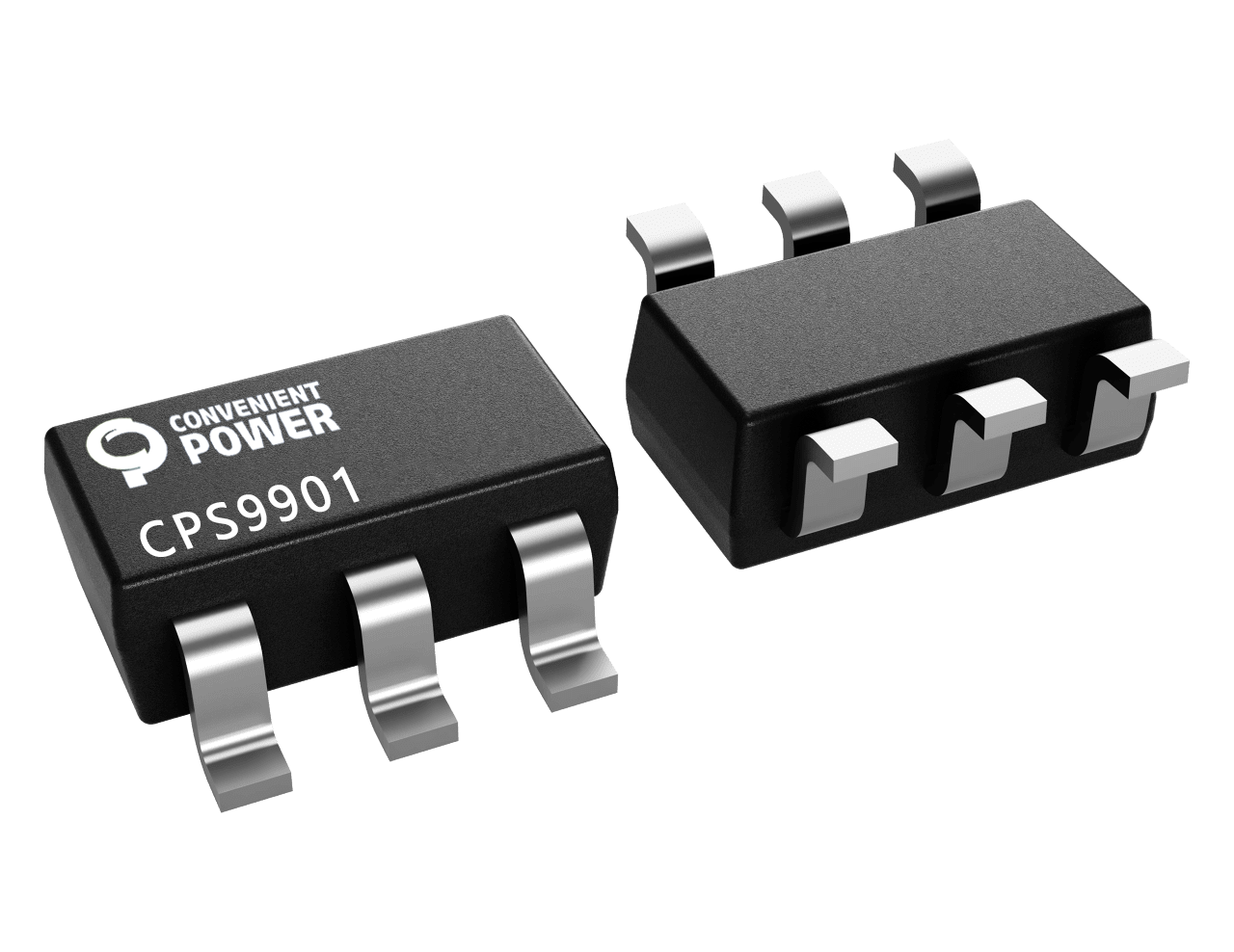

CPS9901

Application

Battery Charges for Smart Phones, Feature Phones, and Tablet PCs

AC-DC Adapters for Portable Devices

The CPS9901 is a secondary-side synchronous rectifier (SR) controller for an isolated flyback converter operating in Discontinuous Conduction

Mode (DCM) and Continuous Conduction Mode (CCM).

Key Spec. & Features
Key Spec.
Part Number CPS9901
Control Mode ZVS/CCM/QR/DCM
Fsw_max 200KHz
Green Mode Power <200uA
Break down Voltage (V) 120V
Turn-on/off Delay 12ns/12ns
Output 3-25V
High/Low side support
Package SOT23-6
Features

Suited for 120V High/Low-Side SR Control & CCM/DCM/QR Mode

Suitable for 3V to 25V Wide Output Voltage Operating Range

Built-in Self-powered LDO is Used for Low VOUT and High-Side SR

Adaptive Turn-off Threshold Control to Optimize Efficiency

Maximum Operation Frequency Up to 200kHz

SR Gate Fast Turn-on (12ns) and Turn-off (12ns)

SR Gate Clamping before Start-up

200uA Operating Current in Green Mode

SOT23-6 Package

RoHS,Halogen-Free and Lead-Free Compliant
