CPS5052
Application
Battery−powered Equipment
Smart phones, Tablets
Cameras, DVRs, STB and Camcorders
The CPS5052 is a 1A VLDO equipped with NMOS pass transistor and a separate bias supply voltage (VBIAS). The device provides very stable, accurate output voltage with low noise suitable for space
constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the CPS5052 features low IQ consumption.
| Part Number | CPS5052 | |
|---|---|---|
| Vin Range | 0.5~5V | |
| Vout Range | 0.5~3.6V | |
| Max Iout | 1000mA | |
| IQ | 44μA | |
| PSRR at 1kHZ | 80 dB | |
| Key Features | Output Active Discharge | |

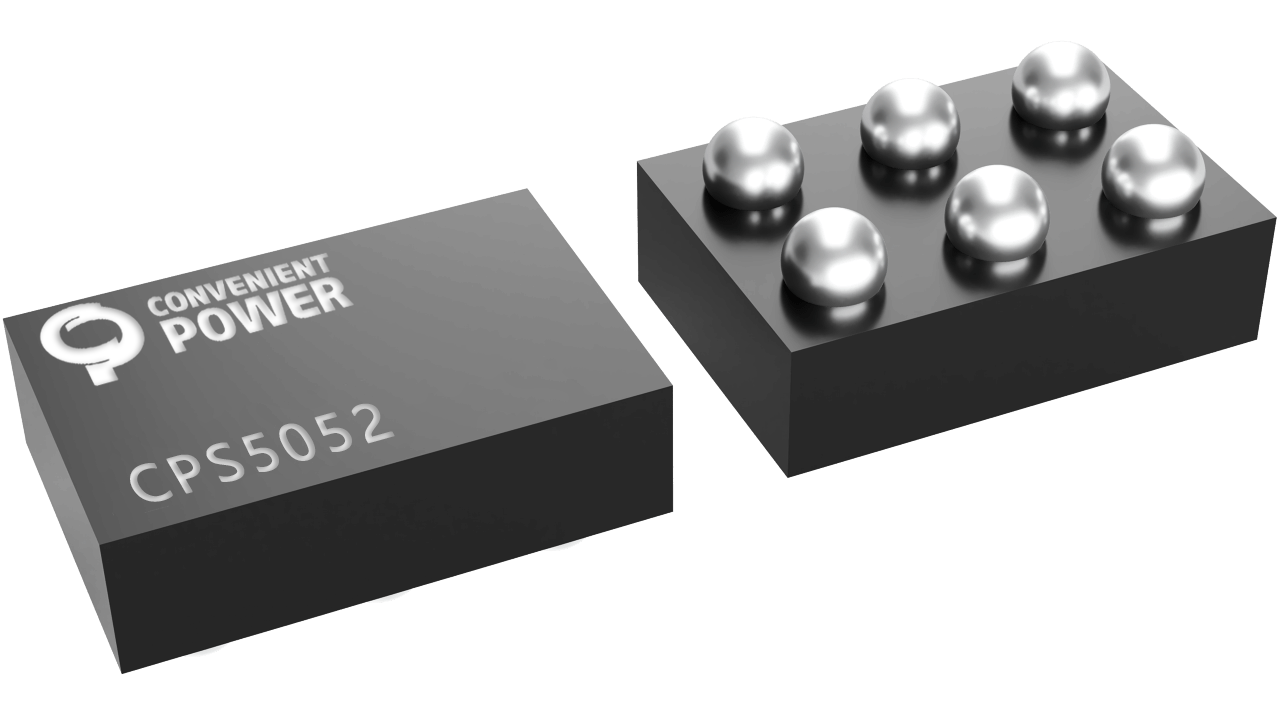

| Package | WLCSP-6 | |
Input Voltage Range: 0.5V - 5V
Bias Voltage Range: 3.0V - 5.5V
Output Voltage Range: 0.5V - 3.6V
Low Dropout: 85mV Typ. @ 1A
Very low bias Input Current: 44μA Typ. @enable 0.5μA Typ. @disable
Output voltage accuracy: ±0.5%@25oC
Logic Level Enable Input for ON/OFF Control
Output Active Discharge Function
Stable with a 10μF Output Ceramic Capacitor
