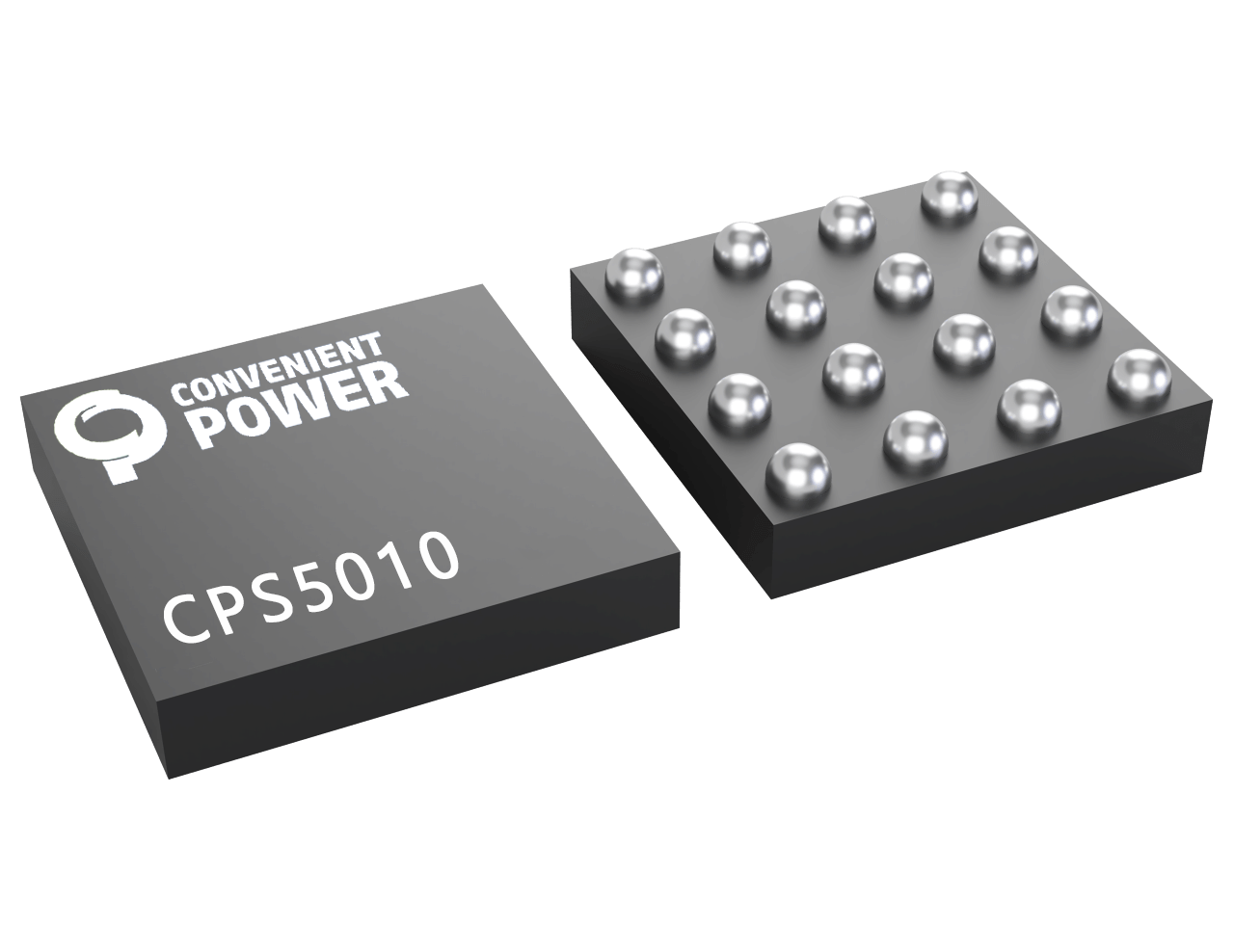

CPS5010
Application
The CPS5010 is a high-voltage, high-frequency bidirectional coil switch IC for wireless power application. It is used to isolate the power path when disabled by nEN & nEN_PI pin status. It includes under voltage lockout and over-temperature protections.
| Part Number | CPS5010 | |
|---|---|---|
| Vin Range | 2.4~5.5V | |
| Abs. Max Vin | 6.0V | |
| Ron | 150mΩ | |
| Max Iout | 2.0A | |
| Surge | - | |
| IEC ESD – Contact Discharge | - | |
| IEC ESD – Air Gap Discharge | - | |
| Key Features | Coil Switch support ±40V, Weak ON mode | |
| Package | WLCSP-16 | |
Supply voltage range: 2.4V to 5.5V
150mΩ RDS_ON AC switch
Up to 1MHz AC voltage on COIL/AC pins
+/-40V OFF tolerance on COIL pin
-0.6V to 40V OFF tolerance on AC pin
Up to 36V ON tolerance on COIL/AC pins
Weak ON state available for power saving
ISW_maximum: DC 2A (contiuous)
Compact WLCSP-16 package
