CPS5007
Application
Laptop, ultra-book and desktop
USB PD or Type-C port/hubs
Tablet and smart phone
The CPS5007 is an advanced 5A unidirectional power switch for USB-C PD. It includes under voltage lockout, over voltage lockout, reverse current protection and over-temperature protection circuits. It is designed to automatically isolate the power switch terminals when a fault condition occurs. Both VBUS and VINT pins have 30V DC voltage tolerance. It has wide input voltage range of 2.55V to 23V.
| Part Number | CPS5007 | |
|---|---|---|
| Vin Range | 2.55~23V | |
| Abs. Max Vin | 29V | |
| Ron | 27.5mΩ | |
| Max Iout | 5.0A | |
| Surge | ±120V | |
| IEC ESD – Contact Discharge | ± 8kV | |
| IEC ESD – Air Gap Discharge | ±15kV | |
| Key Features | RBP, RCP, Adj. OVP | |
| Package | WLCSP-15 | |
2.55V to 23V Input Voltage Range
27.5mΩ (typical) Low ON resistance
30V DC voltage tolerance on both VBUS and VINT pin
Built in slew rate control for inrush current limit
Over-Temperature Protection
Over-Voltage Protection
Under-Voltage Lockout
Reverse Current Protection
VBUS IEC61000-4-5
Exceeds ±120V without capacitor
±130V with 22uF capacitor
VBUS ±8kV for IEC61000-4-2 contact discharge
VBUS ±15kV for IEC61000-4-2 Air discharge

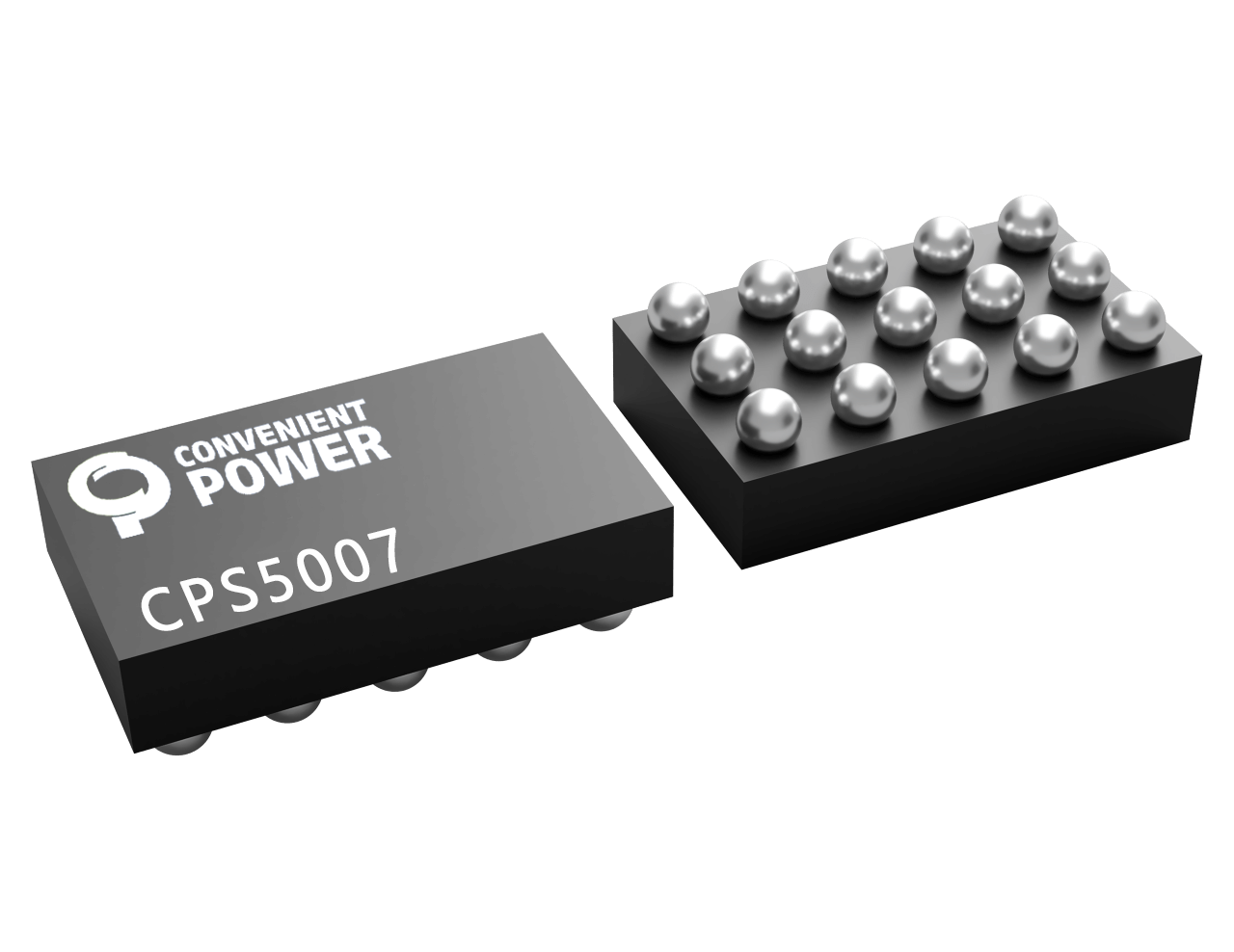

WLCSP 15-bump 1.54mmx2.56mm
