CPS5505
Application
Tablets PC
Notebook
Thunderbolt Docking
PD Device
CPS5505 integrate high voltage MOSFET, fast over voltage comparator, high voltage ESD (Electrostatic Discharge) ect. It can prevent USB device damage in some extremely scene such as VBUS short to CC or SBU accidentally.
| Part Number | CPS5505 | |
|---|---|---|
| Vin Range | 2.7~5.5V | |
| Abs. Max Vin | 24V | |
| Ron | CC = 0.27Ω SBU = 4Ω | |
| Max Iout | CC: 0.6A | |
| Surge | CC/SBU: ±30V | |
| IEC ESD – Contact Discharge | CC/SBU: ±6kV | |
| IEC ESD – Air Gap Discharge | CC/SBU: ±8kV | |
| Key Features | OVP, Dead Battery mode | |
| Package | QFN-20L | |
Input Voltage Range： 2.7-5.5V
CC MOSFET Ron: 270mΩ
SBU MOSFET Ron: 4Ω
Low Supply Current: 73µA (Typical)
CCX OVLO Threshold: 5.9V±0.2V
SBUX OVLO Threshold: 4.5V±0.2V
Ultra-Fast OVP Response Time: 80ns (Typical)
CCX and SBUX ESD: IEC61000-4-2
Contact discharge: ±6KV
Air gap discharge:±8KV
CCX and SBUX DC tolerant voltage: 24V
D1 and D2 ESD: IEC61000-4-2
Contact discharge: ±8KV
Air gap discharge:±15KV
Dead Battery Mode
Fault indicate

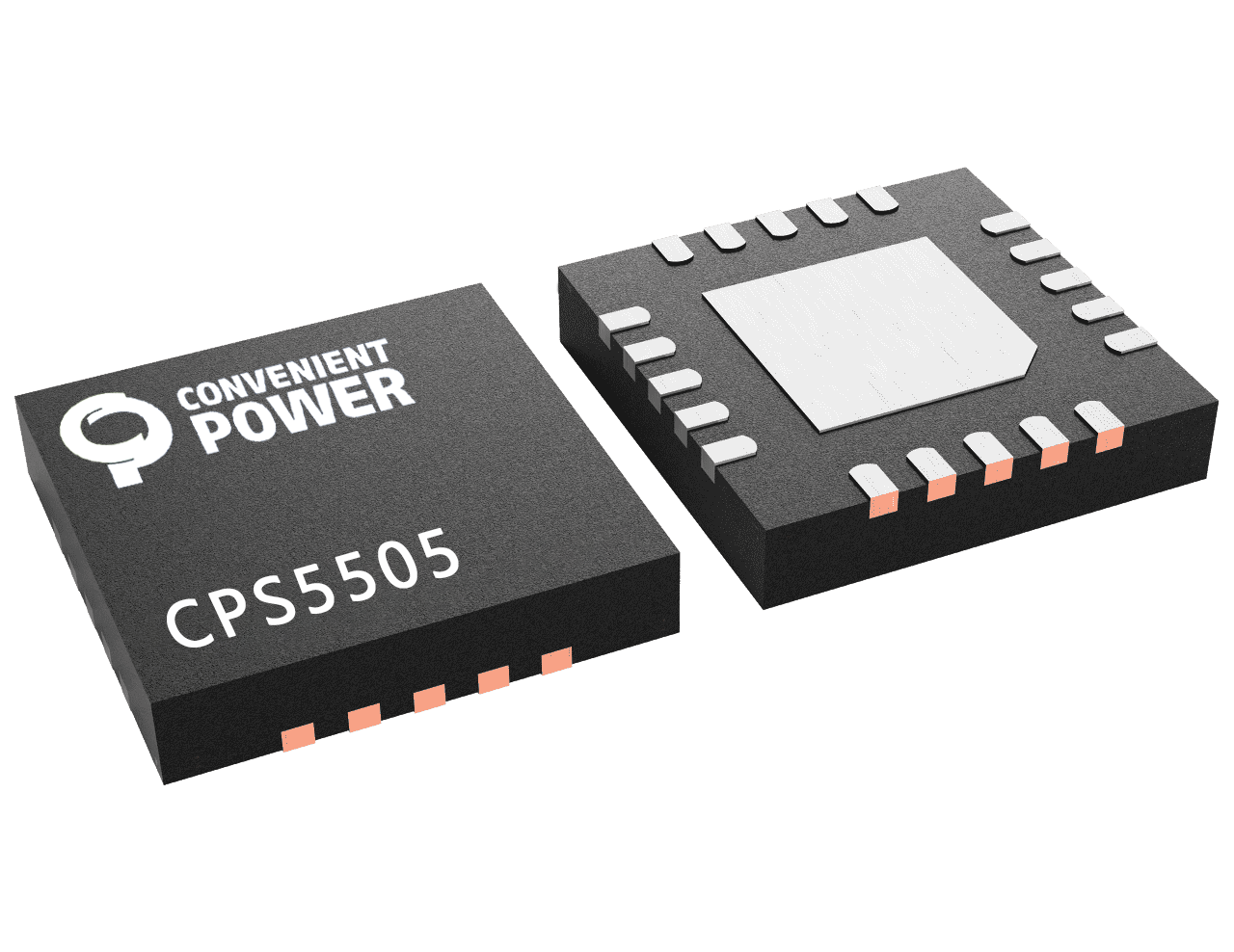

Package available QFN-20L 3.0mm x3.0mm
RoHS, Halogen-Free and Lead- Free Compliant
