CPS4019

Application

Mobile accessories

TWS case wireless charging

Other WPC compliant receivers

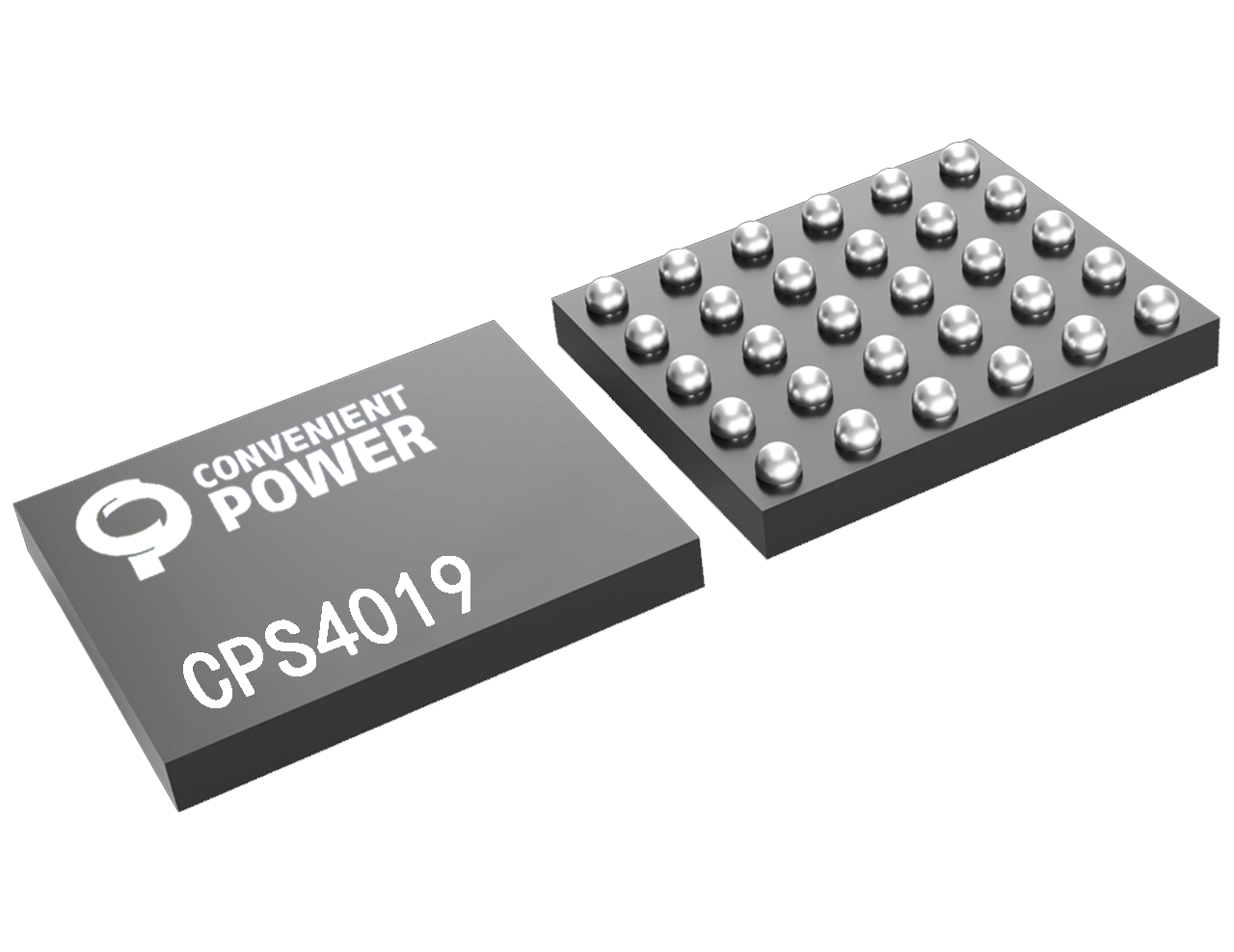

The CPS4019 is a highly efficient, Qi-compliant, single-chip Wireless Power Receiver IC. It supports up to 5W applications in the Receiver (Rx) Mode. The device receives AC power from a Wireless Power Transmitter (Tx) and converts it into a rectified output voltage. As a Rx, it integrates a synchronous rectifier and a low drop-out regulator to provide power to system load or battery. Modulation and control circuits are used for bi-directional in-band communication to the Tx.

Key Spec. & Features
Key Spec.
Part Number CPS4019
Rx Mode Output Power (W) 5
AC/VRECT AMR (V) 20
Vout Max (V) 9
lout Max (A) 1.1
Current Sensing Internal
Tx Mode Max Power (W) -
Digital Core 8-bit
Memory 16k MTP/ 2k SRAM
Package WLCSP-30
Features

Support up to 5W in Receiver Mode (WPC 1.3 BPP and Proprietary)

Embedded A core and on-chip 16kB MTP and 2kB SRAM

Full synchronous rectifier with low RDS_ON

Ultra-low dropout linear (LDO) regulator with programmable output voltage with 20mV step

Ping detector feature for heat dissipation management

Two general purpose I/O pins

I2C interface for system configuration and customization

Comprehensive protections

12-bit ADC for comprehensive input and output power monitoring

Rectifier Over Voltage Protection (OVP)

Main LDO Over Current Protection (OCP)

Over Temperature Protection (OTP)

Available in WLCSP-30 package RoHS, Halogen-Free and Lead-Free Compliant
