CPSQ5206 (AEC-Q100)

Application

USB Type-C with PD Charging Only Port

USB Type-C with PD for Hub or Head Unit

Automotive Infotainment and Cluster

Wireless Fast Charging

CPSQ5206 is an AEC-Q100 qualified, synchronous 4-switch buck-boost controller capable of providing a regulated output voltage which is below, above or exactly equal to the input voltage. Based on different input voltage and output voltage combinations, the converter is operated in either buck, boost or buckboost mode. The converter achieves dynamic and seamless transition among different operating modes without host control.

Key Spec. & Features
Key Spec.
Part Number CPSQ5206 (AEC-Q100)
Vin Range 3.8~36V
Abs. Max Vin 40V
Vout Range 2.0~36V
Max Iout 8A
MOSFETs external
Topology Buck-boost
Freq. Range 200kHz /400kHz /600kHz /800kHz
I2C Ctrl Support
Prog. VOUT I2C prog / ext. res
Output ILIM Support
Constant Current Mode Support
PFM Support
FPWM Support

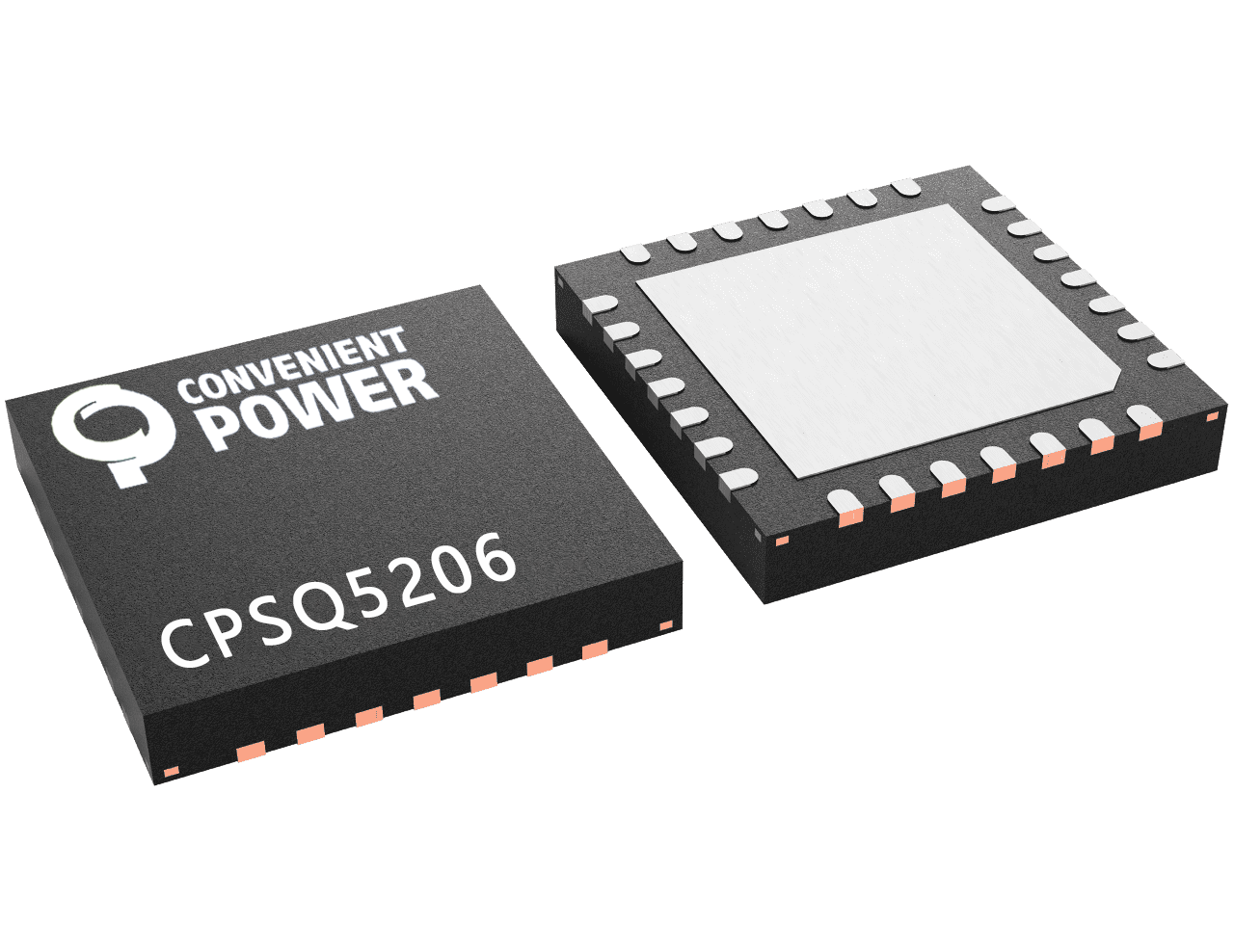

Package Side wettable QFN-28 5mm*5mm
Features

AEC-Q100 Grade 1 qualified for automotive applications.

RoHS Compliant, Halogen-Free and Lead-Free.

Single inductor, 4-switch buck-boost controller for high efficiency step up/down DC/DC conversion.

Wide input voltage range from 3.8V to 36V.

Seamless transition among buck, buck-boost and boost modes.

Selectable 200kHz, 400kHz, 600kHz and 770kHz switching frequency.

Configurable PFM or FPWM operation at light load condition.

Programmable output voltage and current regulation for USB-PD PPS application.

Wide output range from 2.0V to 36V with 10mV step size.

Optional output current regulation up to 8A with 50mA step size (with 5mΩ output current sensing resistor).

Selectable VOUT transition slew rate to be compliant to USB PD 3.0 specification.

Optional external clock synchronization to avoid frequency interference and crosstalk.

Optional programmable spread spectrum for EMI mitigation.

Integrated VOUT discharging feature.

Comprehensive protection features.

Programmable input over-voltage protection.

Output over-voltage protection.

Optional hiccup mode for output short circuit protection.

MOSFETs cycle-by-cycle current limit.

Thermal shutdown.

Available in a 5mm x 5mm QFN-28 package
