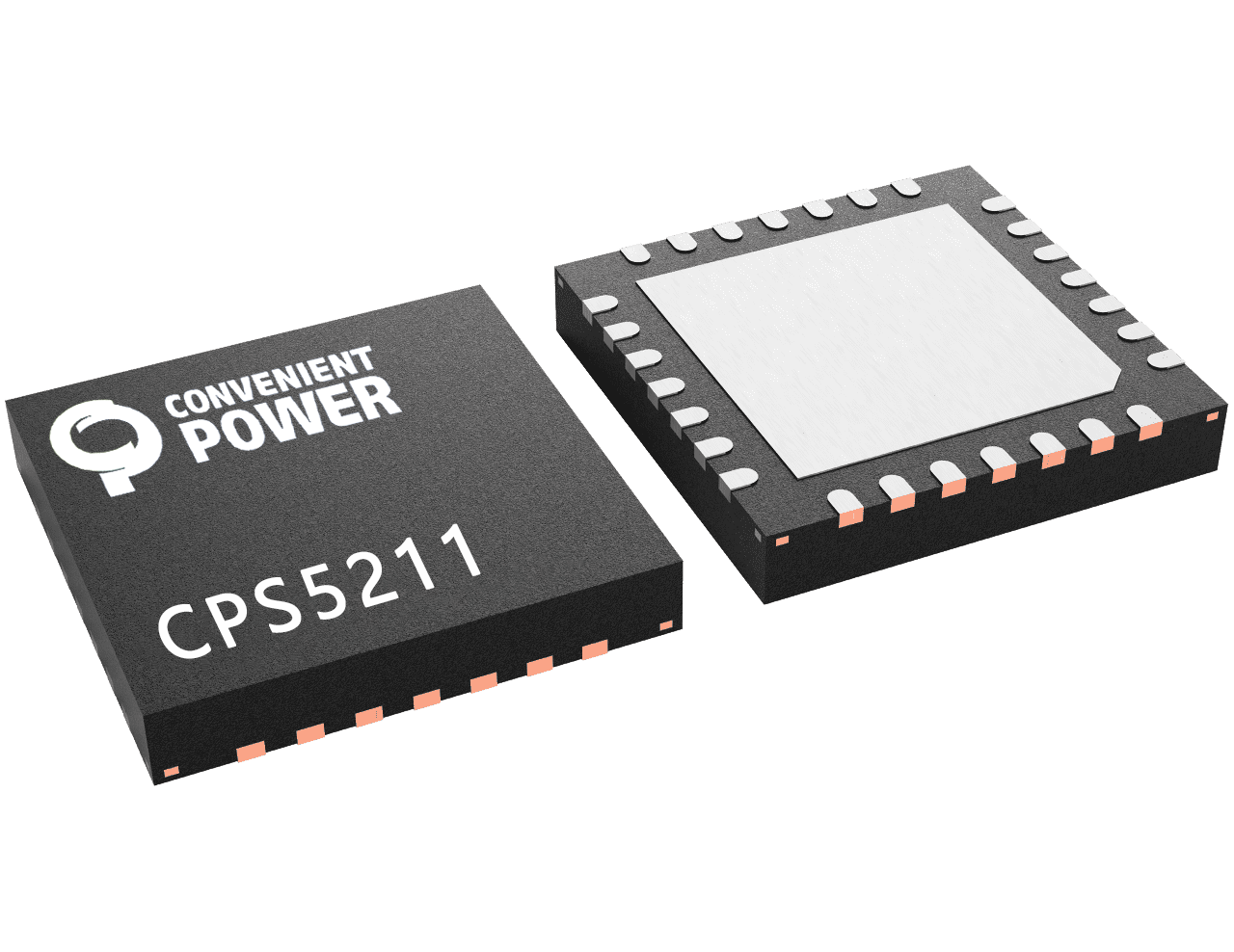

CPS5211
Application
TWS Box
1 Cell Li-on Application
Wireless & VBUS Charging
The CPS5211 is a highly integrated single-chip PMIC for VBUS and wireless receiver, switching charger plus boost circuitry. CPS5211 will auto judge the input source to select VBUS or wireless charging. Its input has 15V tolerance to enhance the input voltage robust likes VBUS plug-in. The switching charger can support maximum 1A charging current to decrease the charge time. The boost can support 5V/0.5A output.
| Part Number | CPS5211 | |
|---|---|---|
| Vin Range | 4.4~5.5V | |
| Abs. Max Vin | 15V | |
| Wireless Rx | 5W | |
| Battery Cell | 1 | |
| Max Charge Current | 1A | |
| Topology | Buck | |
| Boost Voltage Range | N/A | |
| Max Boost Current | 0.5A | |
| Auto Load Detection | Suppport | |
| Hall/Key In Detection | N/A | |
| I2C Control | Suppport | |
| Prog. Ilim | I2C or Res | |
| ADC | 10-bit | |
| NTC | Support | |
| Safety Timer | Support | |
| DPM | Support | |
| Shipping Mode | N/A | |
| Other Feature | VBUS OVP/OCP Thermal Regulation LED Status indication | |
| Package | QFN-28 4.0 x 4.0mm | |
Fully integrated with OVP, switching charger and boost
Fully integrated with wireless receiver compatible WPC 1.2.4
Ultra low standby current
5uA Boost Supply Current
Charge current up to 1A
Boost maximum capability: 5V/0.5A
Boost Efficiency optimize for <100mA
Low RDS(on) FET
Minimum Extra Component requirement
Auto Load Detect
Interrupt
Bus Over voltage/current protection
Battery Over voltage protection
NTC Function
Thermal Loop and DPM
Thermal shutdown
Available in QFN28 4mmx4mm
RoHS, Halogen-Free and Lead- Free Compliant
