CPS8821B
Application
Passive USB Type-C cables such as full-featured C-to-C cables
This chip is an electronic marker for USB Type-C passive cables with extremely low BOM cost, which makes the cable connectors compact. This chip supports structured VDM Discover Identity Command directed to SOP’, which provides a method to determine the characteristics of cables, e.g. current-carrying capability, performance and vendor identification. Being compliant to PD3.0 V2.0, this chip also supports extended message Get_Manufacture_Info and will respond by returning a Manufacture_Info message containing manufacturer info data block (MIDB). Customized data can be stored in the MTP and in-cable programmed through CC PIN.
| Part Number | CPS8821B | |
|---|---|---|
| CC Voltage | 33V | |
| VCONN Voltage | 33V | |
| VCONN Power | 2.75 - 5.5 V | |
| Thunderbolt Support | √ | |
| USB-IF TID | TID4244/XID8836 | |
| Protocols | USB 4.0 PD3.0/PD2.0/雷电4 | |

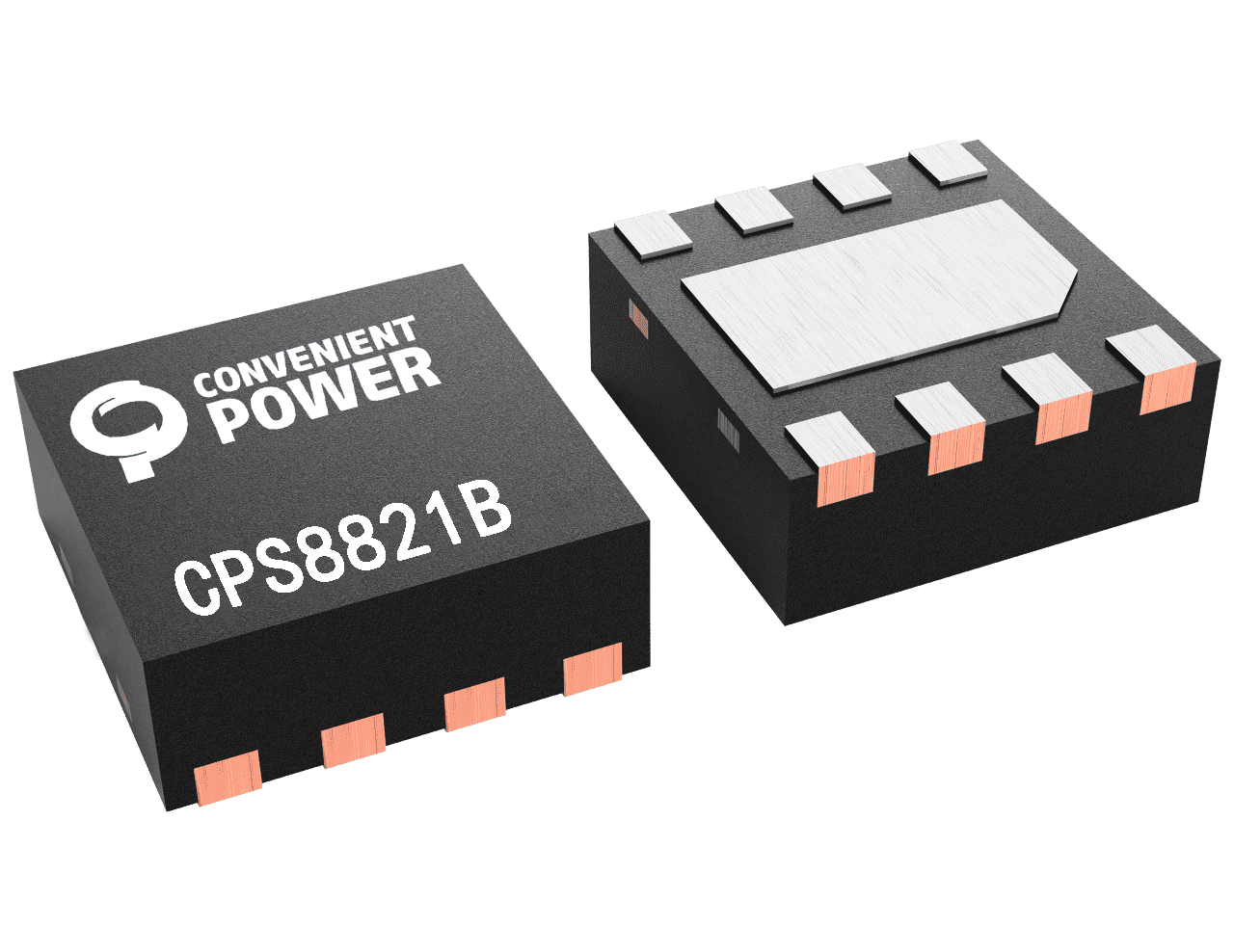

| Package | DFN-8 | |
Support Thunderbolt 3 and USB4(TID:4244)
USB PD3.0 V2.0 compliant
Support SOP’ communication
Respond to structured VDM Discover Identity, Discover SVID, Discover Mode, Enter Mode and Exit Mode Command and extended message
Get_Manufacture_Info
Adaptive engine of BMC receiver
Extremely low BOM cost
Integrated ISO diodes
Integrated LDO and oscillator
Embedded MTP for customized data
In-cable MTP programming through CC
I2C-based programming and debug
High-DC tolerant and short-to-VBUS protection on VCONN1/2 and CC pins
Power supply: 2.7 - 5.5V
Ambient temperature range -40 - 85 ˚C
VCONN and VCC range -0.3 - 33V
Package: DFN-6L 2mm x 2mm, DFN-8L 2mm x 2mm and CSP-6L 1.06mm x 1.43mm
