CPSQ8830
Application
Automotive USB Qc3.0 Charging Ports
Automotive USB Type-C Charging Ports
The CPsQ8830 is a highly integrated 36V, 3A step down converter with multiple USB fast charging protocol. it can supply wide input voltage range from 5.5V to 36V and wide output voltage range from 3.3V to 21V with maximum 27W output power.
| Part Number | CPSQ8830 | |
|---|---|---|
| Port | Type-C | |
| CC1/2 DP/DN voltage | 24V / 18V | |
| Abs. Max Vin | 40V | |
| Topology | Buck converter integrated | |
| MOSFETs | Internal | |
| Feedback | Internal | |
| Memory | × | |
| Protocols | PD3.1&PPS | |

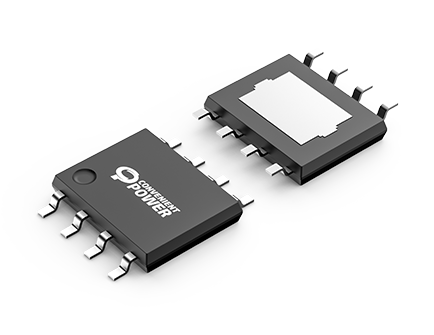

| Package | ESOP-8 | |
Supports Type-C V2.0 and PD3.1/PPS R2.0
DFP Mode
DP/DM support BC1.2 DCP mode, QC2.0/3.0.SCP A and B Class, AFC and Apple Mode 2.4A
AEC-Q100 qualified for automotive applications
Internal Over-Temperature Protection
DP/DM and CC1/CC2 Pins Short-to-Battery Protection
Wide 5.5 to 36V continuous operation input range
Wide 3.3 to 21V output voltage range
Selectable switching frequency 250kHz with spread spectrum
Line drop compensation
Type-C insert and polarity detection
