CPSQ8841H/CPSQ8841M
Application
USB PD Type-C or Proprietary Protocols (e.g.FCP) Chargers for vehicle-mounted
Car charger
CPSQ8841H/M is a highly integrated fast charge protocol source controller that supports many charging protocols
| Part Number | CPSQ8841H/CPSQ8841M | |
|---|---|---|
| Port | Type-C | |
| CC1/2 DP/DN voltage | 28V / 6.5V | |
| Abs. Max Vin | 26V | |
| Topology | Protocol only | |
| MOSFETs | × | |
| Feedback | Opto/FB | |
| Memory | MTP | |
| Protocols | PD3.1&PPS | |

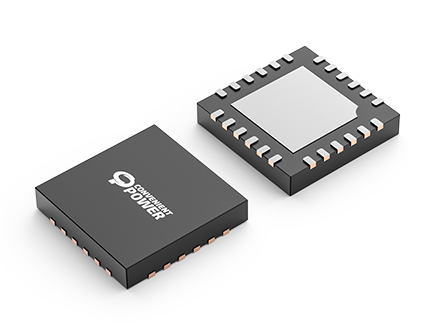

| Package | QFN-24 | |
Suitable for 3.3V to 21V output voltage range
USB-lF Certification TlD: 11270
Integrated VCONN power for E-marker recognition
Supports High-side current sense
Internal N-MOSFET driver with soft start
Integrated Vin/Vbus discharge function
Supports master/slave I2C communication
Intelligently adjust output capability based on battery voltage and temperature
Cable drop compensation
Supports Liquid Presence Detection
Supports CCx/DP/DM l/0 and Short-to-Battery/BUS Protection
Multiple programmable GPlOs
Programmable OVP/UVP/OCP/OTP
Available in AEC-Q100 Grade 2
RoHS, Halogen-Free and, Lead-Free Compliant
