CPS8826
Application
USB full-feature Type-C cables
Passive Type-C Cables
The CPS8826 is an electronically marked lD for passive full-feature USB Type-C cables.
| Part Number | CPS8826 | |
|---|---|---|
| CC Voltage | 26V | |
| VCONN Voltage | 26V | |
| VCONN Power | 2.75-5.5V | |
| Thunderbolt Support | √ | |
| USB-IF TID | TID:12103 | |
| Protocols | USB4.0 PD3.2/TBT4 | |
| Package | DFN-6 DFN-4 | |
Support USB Type-C 2.3,USB PD3.2 V1.0,Thunderbolt 4, USB4 compliant
USB-IF PD3.2 certificated (TID:12103)
Support SOP' communication
Power supply: 2.7 -5.5V operation VCONN and VCC range -0.5-33V
Integrated VCONN lSO diodes and Ra
FSM integrated
In-cable 3 times programming through CC High-DC tolerant and short-to-VBUS protectionon VCONN1/2 and CC pins.
Powered directly from VBUS 8kV ESD on high voltage pins
Ambient temperature range -40'C-85 'C

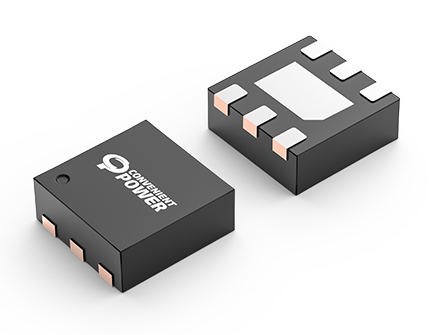

Package: DFN-6L2mmx2mm
