CPS8825
Application
Passive Type-C Cables
The CPS8825 is an electronically marked ID for passive full-feature USB Type-C cables.
| Part Number | CPS8825 | |
|---|---|---|
| CC Voltage | 33V | |
| VCONN Voltage | 33V | |
| VCONN Power | 2.75-5.5V | |
| Thunderbolt Support | √ | |
| USB-IF TID | TID:13859 | |
| Protocols | USB4.0 PD3.2/TBT5 | |

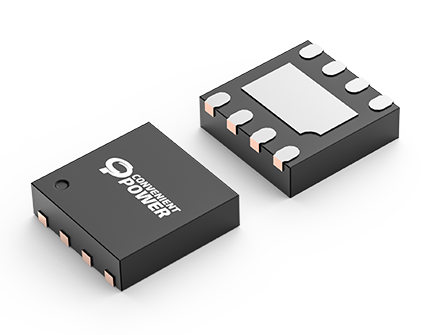

| Package | DFN-8 DFN-6 | |
Support USB Type-C 2.3, USB PD3.2, USB4 compliant
Support SOP'
Power supply: 2.7 -5.5V operation VCONN and Vcc range -0.5 -30V
Integrated VCONN lSO diodes and Ra USB PD FSM integrated
In-cable 2 time programming through CC High-DC tolerant and short-to-VBUS protection on VCONN1/2 and CC pins
Powered directly from VBUS 8kV HBM ESD on high voltage pins
Ambient temperature range -40 'C -85 'C
Package: DFN-8L 2mm x2mm; DFN-6L 2mm x2mm
