CPS1010
Application
WPC Authentication
CPS1010 is a Trust Anchor security device, the algorithm complies with common Criteria Certified EAL5+, dedicated to the Qi authentication application.
| Part Number | CPS1010 | |
|---|---|---|
| Certified | EAL5+ | |
| VIN(V) | 3-5.5 | |
| Algorithms | ECC:SECP 256R1 SHA-256 TRNG | |
| Interface | I2C | |
| Core | 32-bit secure encryption | |
| Memory | OTP | |

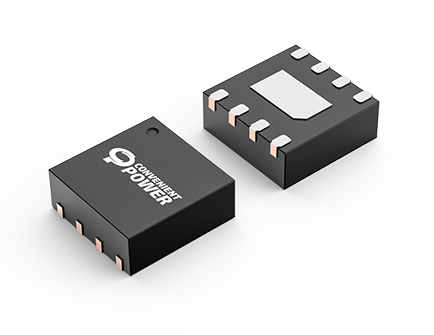

| Package | DFN-8 2mm*2mm | |
The algorithm complies with common Criteria
Certified EAL5+
Wide 3V to 5.5V operational supply voltage.
Support WPC authentication
Integrated Risc-V core, 24MHz Mclk, 3K Bytes SRAM, 12K Bytes OTP and 16K Bytes ROM.
Support 1x I2C interface
4 x Programmable I2C Slave Addresses
Support Low Power Mode and Deep Low Power Mode
Cryptographic support: ECC: SECP 256R1, SHA256
RoHS Compliant, Halogen-Free and Lead-Free
