CPS8602
Application
Charging Pad
Smart Phone
MP3 Player
Blue Tooth
Tablets
Accessories
CPS8602 is a highly efficient, Qi-compliant, magnetic inductive wireless power transmitter lc with wide input voltage range of 3.3V to 14V. lt supports secure communication with wireless power receiver (ASK)fixed communication interface ports, as well as reliable over-voltage/current/temperature protection schemes.
| Part Number | CPS8602 | |
|---|---|---|
| Vin max(V) | 14 | |
| VPA max(V) | 14 | |
| Power Inverter | Internal DrMOS 17mΩ | |
| DC-DC Stage | - | |
| USB-PD | supported | |
| Core | 8-bit | |
| Memory | 32k ROM 32k MTP | |

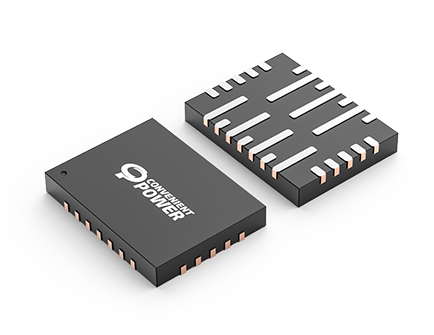

| Package | QFN-24 | |
Support WPC 2.0 15W/Samsung fast charging/ Apple fast charging
Input voltage range: 3.3V to 14V
Integrated core, 256 Bytes Internal RAM, 3K bytes External RAM, 32 K bytes MTP and 32K bytes ROM
High-speed Architecture, 8 MHz - 48 MHz in standard mode, 288 MHz for PWM module
Integrated 2xPWMs(PWMA and PWMB),PWMA up to 288MHz (PWMA with FSK PHY)
LOW RDSON HS/LS: 19mΩ Type
Support dead time adjustment
Voltage and current mode demodulation
Support 2x l2C interface
Support 2x UART interface
Support Sleep Mode and Standby Mode
Over voltage/current/ temperature protection
RoHS Compliant, Halogen-Free and Lead-Free
