CPS8601
Application
Charging Pad
Smart Phone
MP3 Player
Blue Tooth
Tablets
Accessories

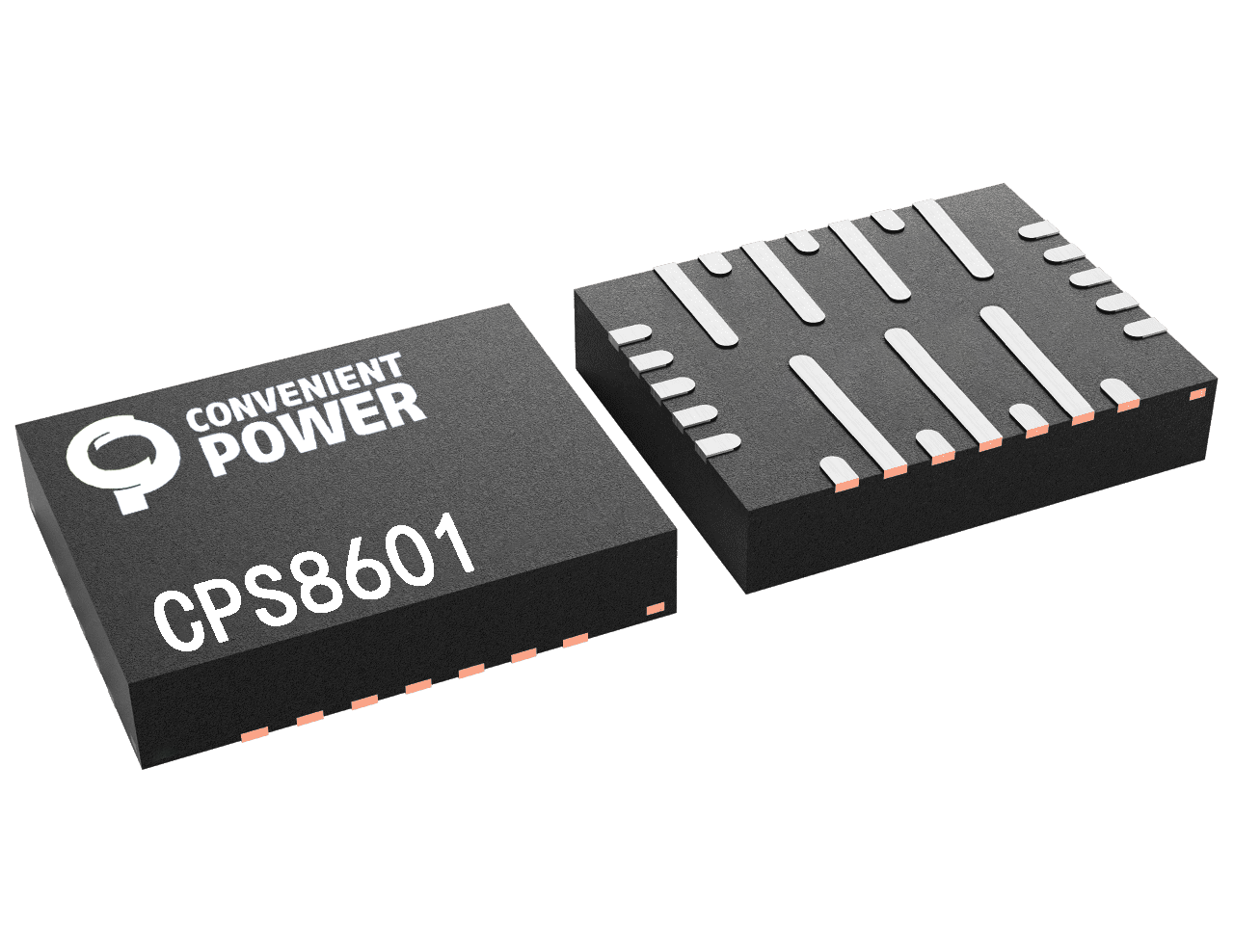

CPS8601 is a highly efficient, Qi-compliant, magneticinductive wireless power transmitter lC with wideinput voltage range of 3.3V to 14V. lt supports securecommunication with wireless power receiver (ASK)fixed communication interface ports, as well asreliable over-voltage/current/temperature protectionschemes
| Part Number | CPS8601 | |
|---|---|---|
| Vin max(V) | 14 | |
| VPA max(V) | 14 | |
| Power Inverter | Internal DrMOS 17mΩ | |
| DC-DC Stage | - | |
| USB-PD | supported | |
| Core | 8-bit | |
| Memory | 40k ROM 16k MTP | |
| Package | QFN-24 | |
Support WPC 1.3 EPP 15W / Samsung fastcharging / Apple fast charging
Input voltage range: 3.3V to 14V
Integrated core, 256 Bytes Internal RAM, 3Kbytes External RAM, 16 Kbytes MTP and 40Kbytes ROM
High-speed Architecture, 8 MHz - 48 MHz instandard mode, 144 MHz for PWM module
LOW RDSON HS/LS: 17mΩ Type
Support dead time adjustment
Voltage and current mode demodulation
Support 2x 12C interface
Support 2x UART interface
Support Sleep Mode and Standby Mode
Over voltage/current/ temperature protection
RoHS Compliant, Halogen-Free and Lead-Free
