CPS8100
Application
Charging Pad
Smart Phone
MP3 Player
Blue Tooth
Tablets
Accessories
CPS8100 is a highly efficient, Qi-compliant, magnetic inductive wireless power transmitter IC with wide input voltage range of 3.9V to 26V. lt supports secure bi-directional communication with wireless power receiver (ASK/FSK), flexible communication interface ports, as well as reliable over-voltage/current)temperature protection schemes
| Part Number | CPS8100 | |
|---|---|---|
| Vin max(V) | 24 | |
| VPA max(V) | 26 | |
| Power Inverter | 4x external FETs | |
| DC-DC Stage | buck/boost/byp ctrl.,+external FETs | |
| USB-PD | supported | |
| Core | 32-bit | |
| Memory | 34k MTP 32k ROM 6k SRAM | |

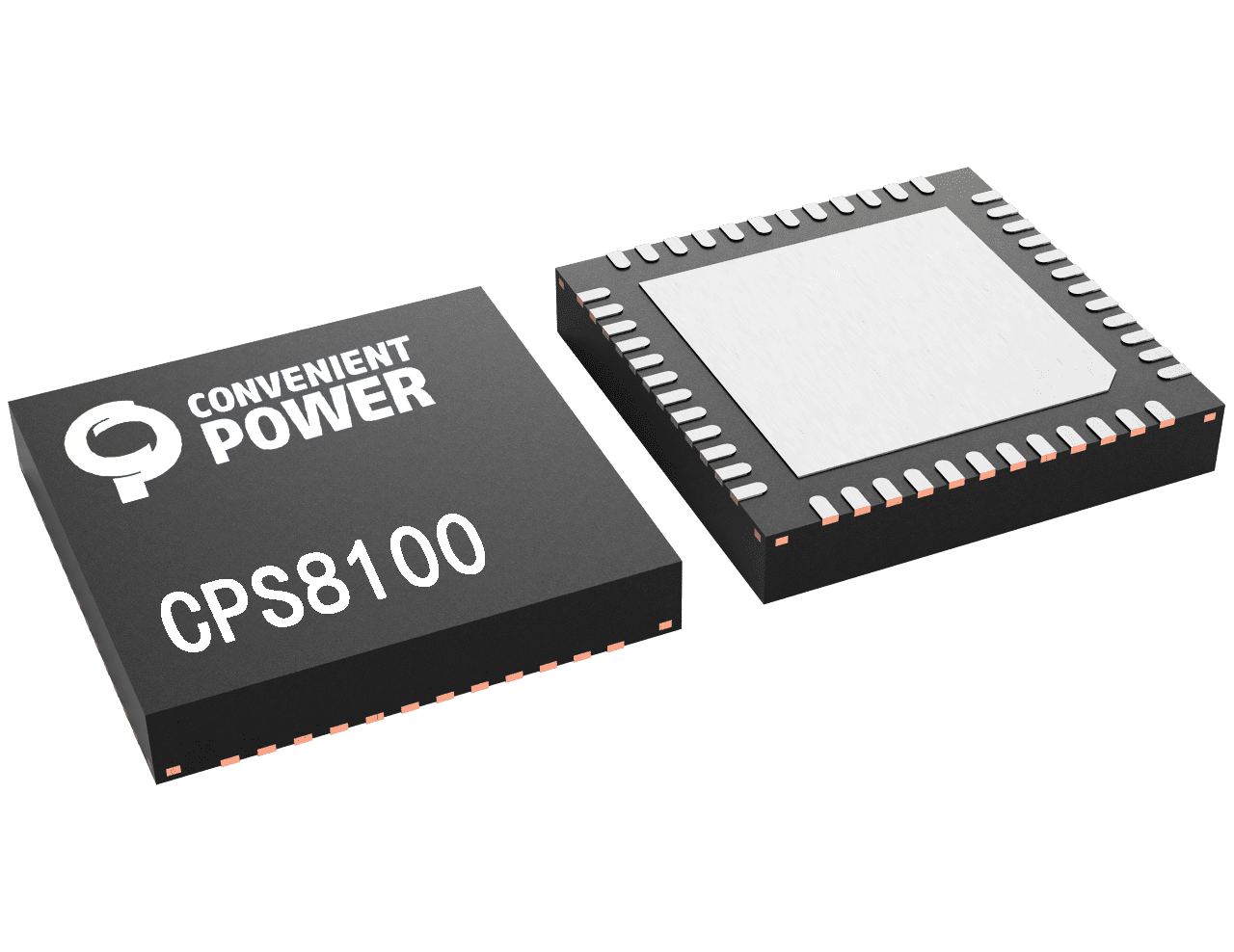

| Package | QFN-48 | |
WPC 1.3 compliant wireless power transmitter
Integrated 34KB MTP, 32KB ROM, 6KB SRAM
Read-Protected/rite-Protected for MTP
Support update MTP through CC or DP/DN line
Support l2C interface
Integrated 2x UART interface
Flexible adaptor support:QC2.0/QC3.0/PD3.0/SCP/AFC
Flexible output power with external MOSFET
Integrated 3 pairs half bridge driver
Integrated Buck or Boost controller
Support double Rx charging application
Integrated external crystal driver
Low Power Mode
Over voltage/current/ temperature protection
RoHS, Halogen-Free and Lead-Free Compliant
