CPSQ54LD135
Application
Automotive LED lights
Automotive dual channel low-side switch
If you need datasheets or other detailed development materials, please contact Mr. Xu guidong.xu@convenientpower.com
| Part Number | CPSQ54LD135 | |
|---|---|---|
| Channels | 2 | |
| Voltage class (V) | 60 | |
| Rds(on) (mΩ) | 120 | |
| Function | Overcurrent Protection/Overtemperature Protection/Active Clamp Protection | |
| Package | SOP-8 | |
2 low-side switches
AEC-Q100 Grade 1 automotive certification
Internal overcurrent protection circuit (OCP)
Internal overtemperature protection circuit (TSD)
Internal active clamping protection circuit
Supports CMOS input control levels
Low on-resistance RDS(ON) of 135 mΩ (VIN=5V, ID=0.5A, Tj=25°C)

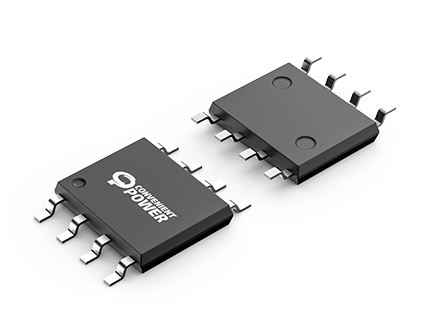

SOP-8 package (4.90mm x 6.00mm x 1.65mm)
