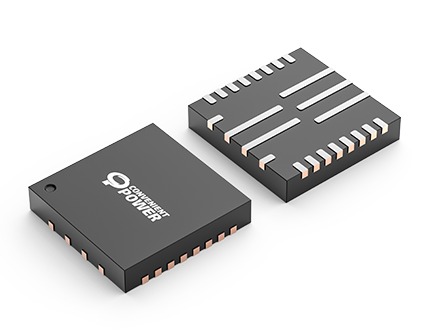

CPSQ8205
Application
50W Auto Tx power stage，Integrated ASK, Q
If you need datasheets or other detailed development materials, please contact Mr. Xu guidong.xu@convenientpower.com
| Part Number | CPSQ8205 | |
|---|---|---|
| VIN max (V) | 5.5 | |
| VPA max (V) | 24 | |
| Power Inverter | Integrated FET driver and bootstrap circuit | |
| I/O | N/A | |
| Interface | 1 x UART | |
| Q-factor | Internal | |
| Core | N/A | |
| Memory | N/A | |
| Package | FCQFN-23 | |
WPC 2.0 compliant wireless power transmitter, EPP supported
4.5V to 5.5V operational supply voltage
2.5V to 24V bridge voltage
Low RDSON HS/LS: 15mΩ Typ.
Integrated FET driver and bootstrap circuit
50kHz to 500kHz direct PWM driver input for two half bridge control with tri-state
Integrated current sense amplifier
Integrated differential voltage sense amplifier
Integrated Q factor detection
Support voltage, current and phase mode demodulation
Support dead time adjustment
Support one-wire UART interface
Over voltage/current/ temperature protection
Package with wettable flanks
AEC-Q100 grade 1 qualified
RoHS Compliant, Halogen-Free and Lead-Free
