CPSQ5462
Application
Automotive LED lights
12-channel high-brightness LED matrix manager for automotive headlight systems
If you need datasheets or other detailed development materials, please contact Mr. Xu guidong.xu@convenientpower.com
| Part Number | CPSQ5462 | |
|---|---|---|
| Vin range(V) | 4.5-60 | |
| Topology | 12 Channel Martix | |
| Channels | 12 | |
| Analog/PWM Width Modulation | PWM | |
| Operating frequency (Hz） | N/A | |

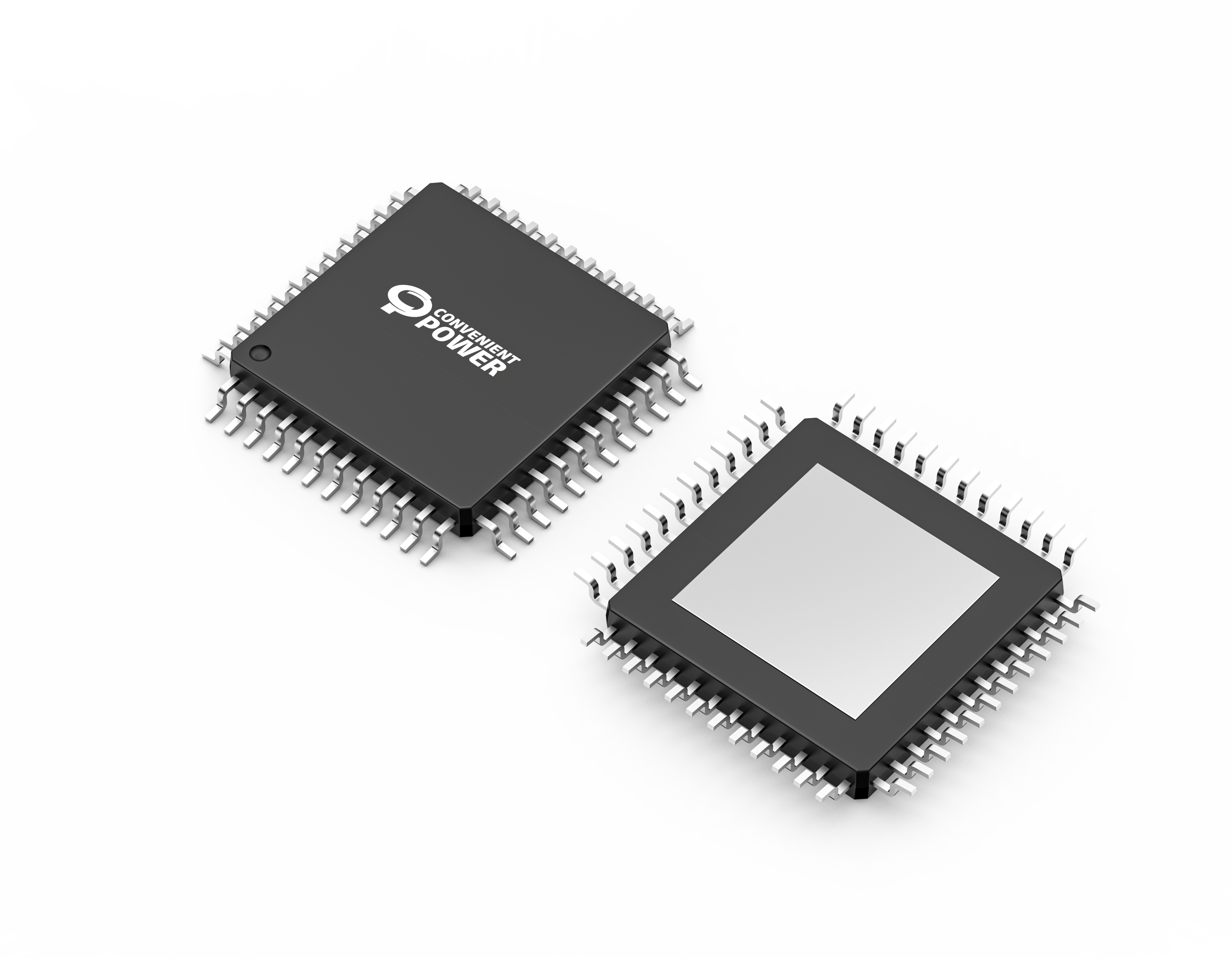

| Package | TQFP-48 | |
Integrated 12-Channel Bypass Switch LED Matrix Controller
AEC-Q100 Grade 1 Automotive Certification
Wide Input Voltage Range from 4.5V to 60V
UART Communication Interface, Compatible with CAN Physical Layer
8-Bit ADC with Two Multiplexed Inputs
Crystal Oscillator Driver
Integrated Oscillator
External EEPROM I2C Interface
Programmable 10-Bit PWM Dimming
LED Open-Circuit and Short-Circuit Detection and Protection
TQFP-48 Package
