CPSQ8860/CPSQ8860H
Application
Car chargers
CPSQ8860 is a highly integrated dual-port charging chip for source controller with dual-port that supports multiple fast charge protocols
| Part Number | CPSQ8860/CPSQ8860H | |
|---|---|---|
| Port | Dual Type-C | |
| CC1/2 DP/DN voltage | 33.5V / 20V | |
| Abs. Max Vin | 33.5V | |
| Topology | Protocol only | |
| MOSFETs | × | |
| Feedback | Opto/FB | |
| Memory | MTP | |
| Protocols | PD3.1&PPS,QC2.0/3.0, UFCS,D+/D- proprietary | |

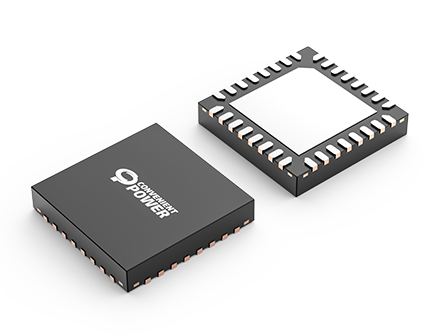

| Package | QFN-32 | |
Supports dualport output between 3.3V and 30V by controlling CV/CC feedback loop through FB control or PC control
Internal three N-MOSFET drivers with soft star
Internal three programmable discharge current to quickly discharge the three output capacitors
Internal two VCONN powers for E-marker Detect
Integrated temperature sensor
Supports dynamic Power Sharing Function
Intelligently adjust output capability based on battery voltage and temperature
Programmable multi functional muliple GPlO ports
Supports Liquid Presence Detection
Supports CCxDP/DM Short-to-Battery /BUS Protection
Programmable OVP/UVP/OCP/OTP
Available in AEC-Q100 Grade2
RoHS, Halogen-Free and, Lead.Free Compliant
