CPSQ8849A
Application
Car chargers
Automotive Type-C Source controller, PD3.0/PD3.1/QC/PPS/FCP/SCP
If you need datasheets or other detailed development materials, please contact Mr. Xu guidong.xu@convenientpower.com
| Part Number | CPSQ8849A | |
|---|---|---|
| Port | Type-C | |
| CC1/2 DP/DN voltage | 26V / 6.5V | |
| Abs. Max Vin | 26V | |
| Topology | Protocol only | |
| MOSFETs | × | |
| Feedback | Opto/FB | |
| Memory | MTP | |
| Protocols | PD3.1&PPS | |

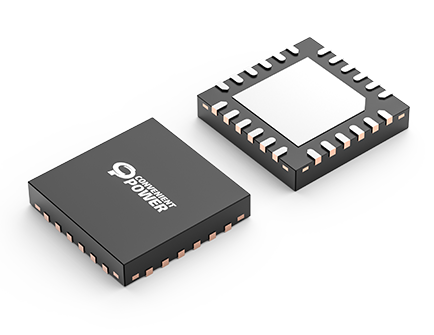

| Package | QFN-24/QFN-16 | |
Support PD3.1 with PPS & VCONN (TID:10018),QC2.0/3.0, UFCS, SCP AB, AFC, Apple Mode and other private protocol
Support online update by CC1/CC2
Support master/slave l2C communication
Support FB control for DC/DC converter
Suitable for 3V to 22V output voltage range
Load switch N-MOSFET with soft start
Integrated temperature sensor
Integrated external low side current sense
Integrated VCONN power
Programmable multifunction 5 GPlO ports
Programmable discharge current
Programmable VAC and LPS detection
Programmable OVP/UVP/OCP/OTP
Available in AEC-Q100 Grade2
RoHS, Halogen-Free and, Lead-Free Compliant
