CPS5011
Application
Smartphones
Tablets
Charging Ports
The CPS5011 is an OvP load switch with +100Vsurge protection.it includes under voltage lockoutvoltageprotection and over-temperatureoverprotection circuits.it is designed to automaticallyisolate the power switch terminals when a faultcondition occurs. The lN pin has 29V DC voltagetolerance. lt has wide input voltage range of 2.3V to28V
| Part Number | CPS5011 | |
|---|---|---|
| Vin Range | 3.0~28V | |
| Abs. Max Vin | 35V | |
| Ron | 13mΩ | |
| Max Iout | 6A | |
| Surge | ±100V | |
| IEC ESD – Contact Discharge | ||
| IEC ESD – Air Gap Discharge | ||
| Key Features | Over Temperature Protection | |
| Package | WLCSP-12 | |
Surge Protection lEC61000-4-5:+100V
12mΩ (typical) Low ON resistance
50ns (typical) Fast Turn-off Response
6A Continuous Current Capability
Default OVP Threshold CPS5011A: 6.8V, CPS5011B: 12.1V
OVP Threshold Adjustable Range.4V to 24V
2.3V to 28V Input Voltage Range
29V DC Voltage Tolerance on IN pin
Over-Temperature Protection
Over-Voltage Protection
Under-Voltage Lockout
IEC61000-4-2 Contact discharge:+8kV
IEC61000-4-2 Air discharge: +15kV

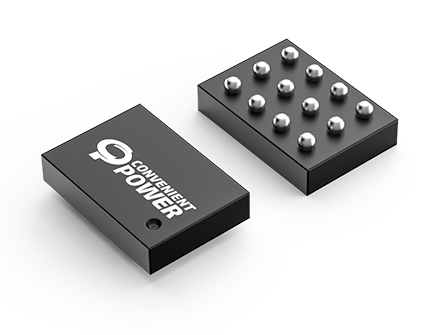

WLCSP 12-bump 1.285mm x1.825mm Package
RoHS, Halogen-Free and Lead-Free Compliant
