CPS5080
Application
IoT
Wearable
Solid State Drive
Battery Powered Devices
Digital Camera
The CPS5080 is an ultra-efficient load switch with ultra-low quiescent current of typical 65nA. CPS5080 operates with input voltage range from 1.0V to 5.5V. It is able to deliver up 2A output current. The CPS5080 provides ultra-low quiescent current IQ and shutdown current ISD. With reduced leakage current, overall system power efficiency and operation life are improved.
| Part Number | CPS5080 | |
|---|---|---|
| Vin Range | 1.0~5.5V | |
| Abs. Max Vin | 6.0V | |
| Ron | 65mΩ | |
| Max Iout | 2A | |
| Surge | - | |
| IEC ESD – Contact Discharge | ||
| IEC ESD – Air Gap Discharge | ||
| Key Features | RCP | |
| Package | WLCSP-4 | |
Input Voltage Range from 1V to 5.5V
Up to 2A Output Current
Ultra-Low RON – 50mΩ
Low Quiescent Current – 65nA
Internal Soft-start – 200μs(Maximum)
Reverse Current Block
Output Short Protection
150Ω Output Discharge

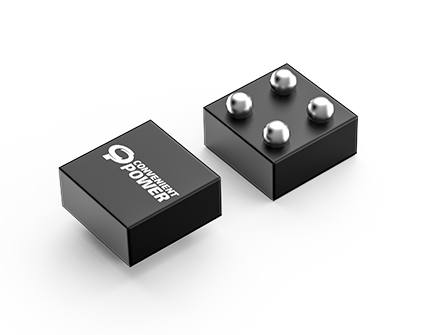

0.77mm x 0.77mm 4-Ball WLCSP Package
RoHS, Halogen-Free and Lead-Free Compliant
