CPS5333
Application
IP Camera
Set Top Box
White Goods
MFP
The CPS5333 is a high efficiency, 750 kHz switch frequency, synchronous step-down DC-DC converter with delivering 3A current capability. The CPS5333 operates over a wide input voltage range from 4.5V to 30V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss
| Part Number | CPS5333 | |
|---|---|---|
| Vin Range | 4.5~30V | |
| Abs. Max Vin | 35V | |
| Vout Range | 0.6V~0.99*Vin | |
| Max lout | 3A | |
| lQ | 100uA | |
| Fsw | 750kHz | |
| Control Mode | COT | |
| Other Feature | Force CCM mode,SCP with Hiccup Mode | |
| Package | TSOT23-6 | |
Input Voltage Range: 4.5V to 30V
Low IQ: 100μA
Support 99% Duty Cycle
Low Shutdown ISD: <5uA
750kHz Switching Frequency
EN for Power Sequencing
Up to 3A Output Current
75mΩ and 50mΩ Internal Power MOSFET Switches
Low EMI
Force CCM mode
Short-Circuit Protection with Hiccup Mode
Stable with Low ESR Output Ceramic Capacitors

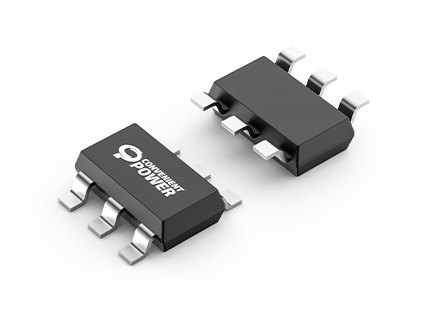

Available in a TSOT23-6 Package
