CPS2011S
Application
Wireless
Charge Device
Smart Cellphone
Portable Devices
Tablet
CPS2011S is a single-cell 8A high efficiency dual-phase switched capacitor charger. It integrated Universal Fast Charging Specification for Mobile Devices (UFCS PHY). It supports up to 12V input voltage, and operates in following 2 modes: Forward 2:1 (up to 8A IOUT) , Forward 1:1 (bypass, up to 5A IOUT). The switched capacitor architecture optimized for 50% duty cycle. The input Voltage is 2x of battery voltage and the output current is 2x of VBUS input current, which effectively reduces power loss across the input cable. CPS2011S integrates protection schemes including input/output over-voltage/current protection, and over temperature protection. It has built-in I2C slave interface for Application Processor configurations.
| Part Number | CPS2011S | |
|---|---|---|
| Vin Range | 3~12V | |
| Abs. Max Vin | 22V | |
| Vout Range | 3~5.5V | |
| Max Iout | 8A | |
| Topology | 2:1 Charger | |
| Support Bypass Mode | ||
| ADC | √ | |
| Other Feature | UFCS/BC1.2 PHY | |
| Package | WLCSP-36 | |
Input voltage: 3V-12V
Efficiency: 97.5% for 4V/4A; 97% for 4V/5A
Switching frequency programmable
Multiple operation modes
Protections includes:
Input over-voltage protection (VBUSOVP)
Input over-current protection (IBUSOCP)
Input under-current protection (IBUSUCP)
Output over-current protection (VBATOCP)
Output over-voltage protection (VBATOVP)
Flying Capacitor Short Protection
Junction over temperature protection
Watchdog Timer
I2C Interface support 1MHz
Integrate 2-Regulation Loop
VBAT: Battery charging voltage regulation
IBAT: Battery charging current regulation
Very Accurate 6-Channel 12-bit ADC
DP/DM for UFCS protocol (PHY)

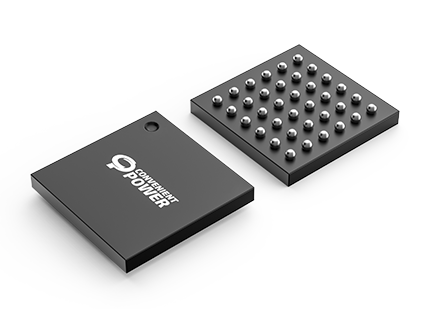

Packaging available in WLCSP-36 2.73mm x 2.73mm (0.25mm ball, 0.4mm pitch)
RoHS, Halogen-Free and Lead-Free Compliant
