CPS5601
Application
Smartphoneandtablet
Portableaccessories

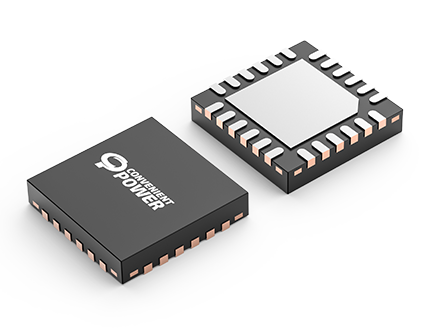

CPS5601 is a highly integrated 3A switching mode buck charger with NVDC power path management for single cell Li-ion and Li-polymer battery. Its input voltage and input current regulation deliver maximum charging power to the battery. The compact solution integrates the input reverse-blocking FET (RBFET, Q1), high-side switching FET (HSFET, Q2), low-side switching FET (LSFET, Q3), and battery FET (BATFET, Q4) between system and battery. It also integrates the bootstrap diode for the high-side gate driver to simplify the system design. The I2C serial interface with fully charging and system settings makes the device a truly flexible solution. The device comes in a 24-pin, 4mm × 4mm QFN package.
| Part Number | CPS5601 | |
|---|---|---|
| Vin Range | 3.9~14V | |
| Abs. Max Vin | 22V | |
| Wireless Rx | N/A | |
| Battery Cell | 1 | |
| Max Charge Current | 3A | |
| Topology | Buck | |
| NTC | √ | |
| Safety Timer | √ | |
| Package | QFN-24 | |
High efficiency, 1.5MHz, synchronous switching mode buck charger for single cell battery
Input supports USB and high voltage quick charge adapters
Narrow VDC (NVDC) power path management
Supports USB On-The-Go (OTG) boost mode operation
BATFET control to support ship mode, wake up and full system reset
Flexible autonomous and I2C mode for optimal system performance
High integration includes all MOSFETs, current sensing and loop compensation
Low quiescent current, <15μA at battery only condition and <1μA in ship mode
High accuracy
Safety
