CPS9051
Application
PD and Quick-Charging Chargers
ACDC Adapters with Wide Output Range
CPS9051 is an advanced PWM controller designed for high power density universal input offline flyback controller. CPS9051 can work at QR mode at high lineand CCM at low line.
| Part Number | CPS9051 | |
|---|---|---|
| Control Mode | CCM/QR | |
| Fsw_Max | 180KHz | |
| VDD_Max | 80V | |
| VDS_Max | 650V | |
| Standby Power | 35mW | |
| GaN FET Rdson | 165mΩ | |
| Power Range | 65W | |
| Package | DFN-18 | |
Integrates 650V E-mode GaN with low Rds on:165mR
Wide VIN operating range : up to 77V to reduceextra coil circuit
Built-in high voltage start-up to reduce externalcomponents
Larger heat dissipation area (E-PAD) in the same package
Multi-mode PWM/PFM controller with frequencyup to 240kHz
Support CCM/DCM/QR operations
Low operating current at light load Negative voltage/current sense to minimize common source inductance
Two stage over-current protection
Frequency Jitter to lmprove EMl
Programmable over temperature protection through external NTC resistor
Rich protections: Brown-in/out, output OVP/UVP, VDD UVP/OVP, OLP/OCP, OTP, etc

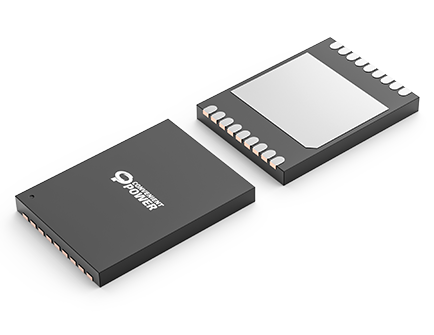

DFN6X8-18 Package RoHS, Halogen-Free and, Lead-Free Compliant
