CPS2020
Application
Wireless Charge Device
Smart Cellphone
CPS2020 is a high efficiency charge pump solution. It supports up to 24V input voltage, and can operate in forward 2:1 charge-pump(max 6A output), reverse 1:2 charge pump, forward or reserve bypass mode.
The charge pump structure only needs ceramic capacitors and no inductance is required, which effectively saves solution size. It also supports parallel operation with SYNC pin
| Part Number | CPS2020 | |
|---|---|---|
| Vin Range | 4~24V | |
| Abs. Max Vin | 30V | |
| Vout Range | 4~12V | |
| Max Iout | 6A | |
| Topology | 4:2 Converter | |
| Support Bypass Mode | ||
| ADC | - | |
| Other Feature | With reverse 2:4 & 2:2 mode, Dual-input | |
| Package | WLCSP-36 | |
Input voltage：4V-24V
Max 97.6% efficiency
Frequency Programmable
Multi Operation Modes:
Forward and reverse bypass mode
Forward and reverse charge pump mode
Protections includes:
Input/Output over-voltage protection
Input/Output over-current protection
Input and Output Voltage range protection
Junction over temperature protection
I2C Interface
Support parallel operation and high charging current (up to 10A )
nEN & nINT

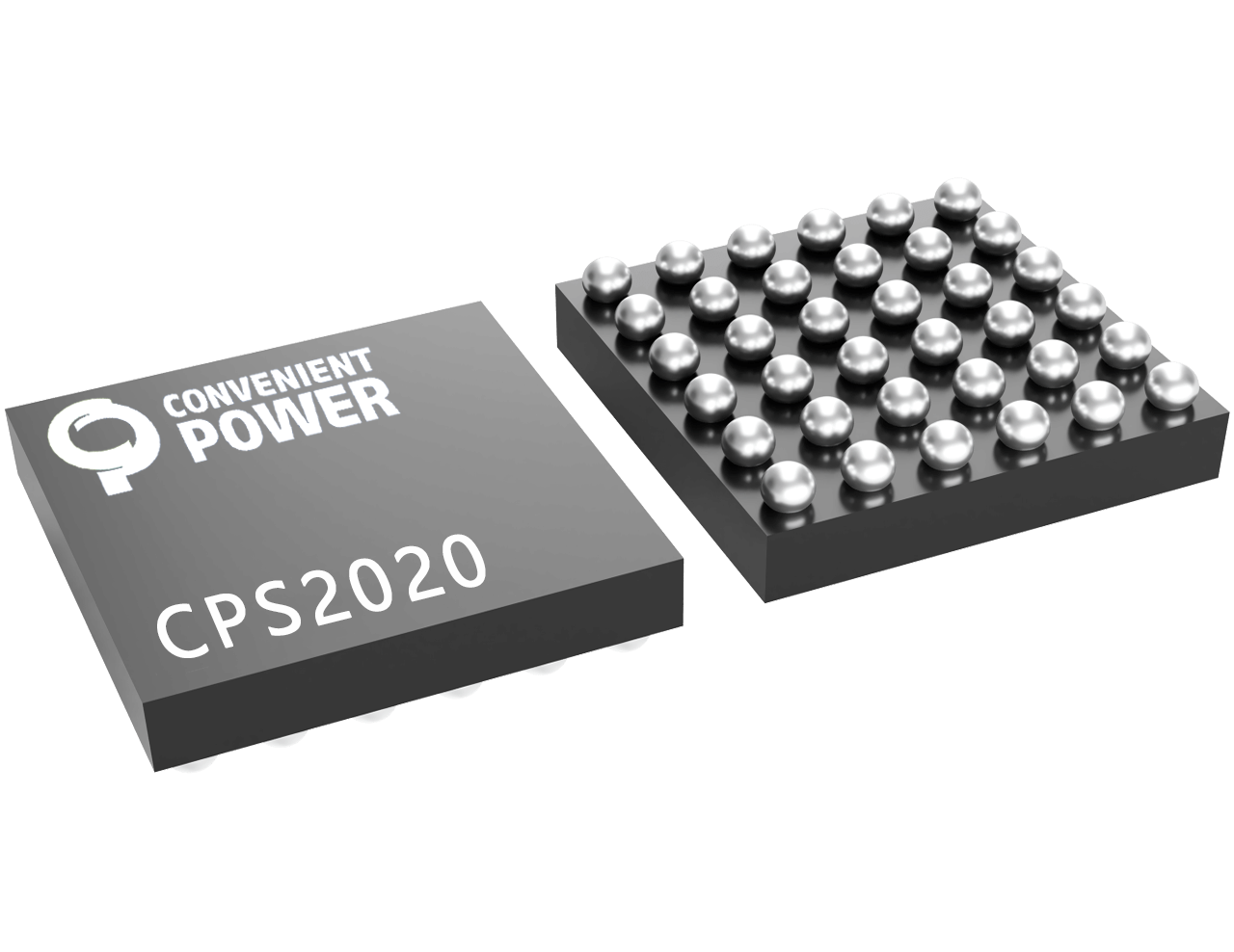

Packaging available WLCSP-36 2.59mm x 2.79mm (0.25mm ball, 0.4mm pitch)
RoHS, Halogen-Free and Lead-Free Compliant
