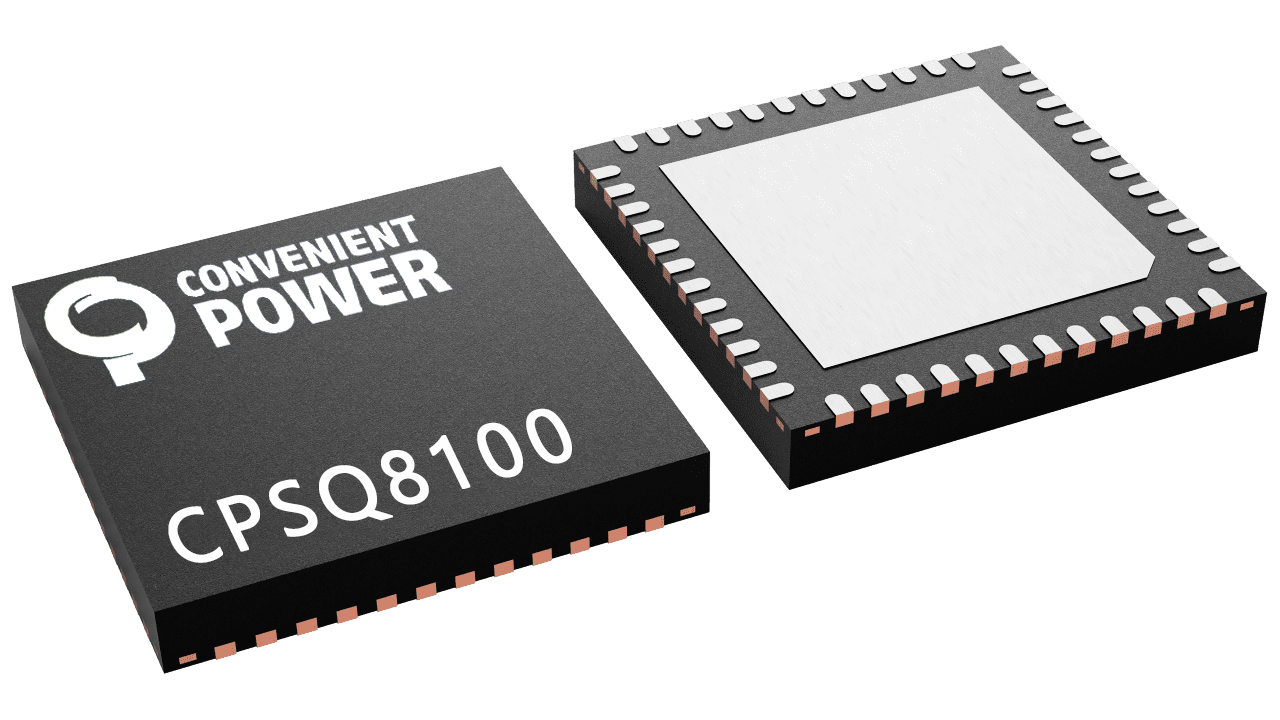

CPSQ8100(AEC-Q100, grade2)
Application
Charging Pad
Smart Phone
Blue Tooth
Tablets
Accessories
Car charger
CPSQ8100 is a highly efficient, Qi-compliant, magnetic inductive Wireless Power Transmitter IC with wide input voltage range of 3.9V to 24V. It supports secure Bi-directional communication with Wireless Power Receiver (ASK/FSK), flexible communication interface ports, as well as reliable Over-Voltage/Current/Temperature Protection schemes.
| Part Number | CPSQ8100(AEC-Q100, grade2) | |
|---|---|---|
| VIN max (V) | 24 | |
| VPA max (V) | 26 | |
| Power Inverter | 4x external FETs | |
| I/O | 16 | |
| Interface | 1 x I2C, 1 x UART | |
| Q-factor | Internal | |
| Core | 32-bit | |
| Memory | 34k MTP/32k ROM/6k SRAM | |
| Package | QFN-48 | |
WPC 1.3 compliant wireless power transmitter
Integrated core, MTP ROM, SRAM
Able to Deliver up to 50W power to Rx
Support I2C interface, 2x UART interface
Integrated 3 pairs half bridge driver
Integrated Buck or Boost controller
Support double Rx charging application
Integrated external crystal driver
Low Power Mode
Over Voltage/Current/Temperature Protection
RoHS Compliant, Halogen-Free and Lead-Free
-40°C to 105°C Operating Temperature Range
AEC-Q100 Grade 2 Qualified
