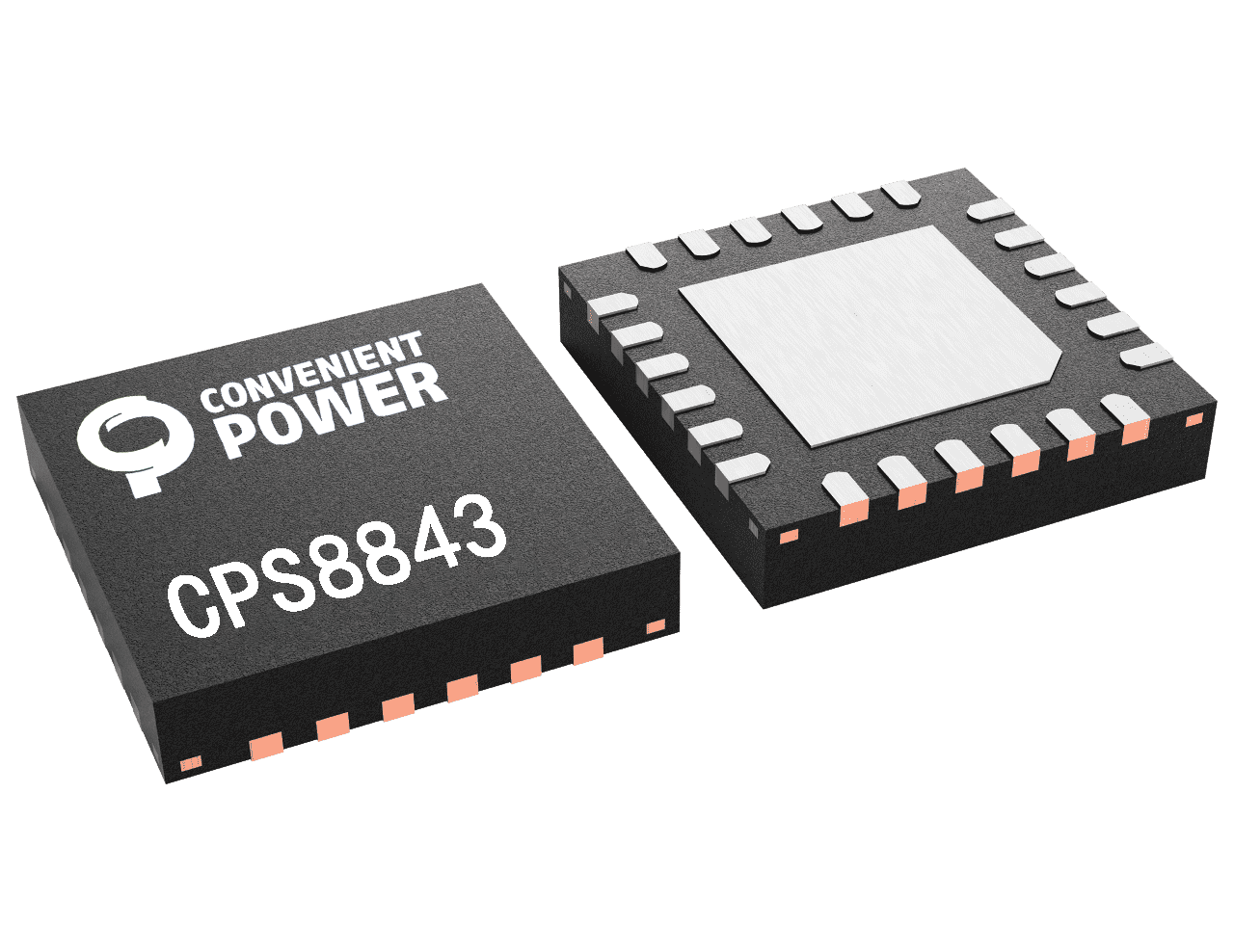

CPS8843

Application

Power adapters

Car charger

Power dongles, etc.

CPS8843 is a highly integrated fast charge protocol source controller that supports charging protocols:

- BC1.2 DCP

- QC2.0/QC3.0

- SCP A and B Class

- UFCS

- PD3.1 with PPS

CPS8843 integrates constant-voltage loop (CV) and High side constant-current loop (CC) with programmable reference voltage to meet the UFCS and USB PD PPS specification.

Key Spec. & Features
Key Spec.
Part Number CPS8843
Port Source Type-C
Protocols UFCS PD3.0&PPS SCP/FCP QC2.0/3.0 D+/D- proprietary protocol
CC1/2 DP/DN voltage 28V / 6.5V
CC/CV loop Support
Load switch NFET
Current sense High-side
VCONN power N/A
Feedback Opto/FB
VD Support
Package QFN-24 4mm*4mm
Features

Support Type-C V2.0 and PD3.1 R2.0 DFP with PPS and BC1.2 DCP, QC2.0/3.0, SCP A and B Class, UFCS etc.

Support VCONN power supply and e-marker detection

Input power supply 3.05V to 22V

Integrated constant voltage and constant current loop

Integrated high side current sense

Integrated shunt regulator and supports 3.3V to 21V VBUS output adjust with 10mV/step. PDO up to 21V

Internal N-MOSFET driver

Integrated primary side voltage detection

Integrated VBUS sense and discharge function

Support I2C master interface

Cable drop compensation

VBUS to CC short protection

Programmable OVP/UVP/OCP/OTP

RoHS, Halogen-Free and, Lead-Free Compliant
