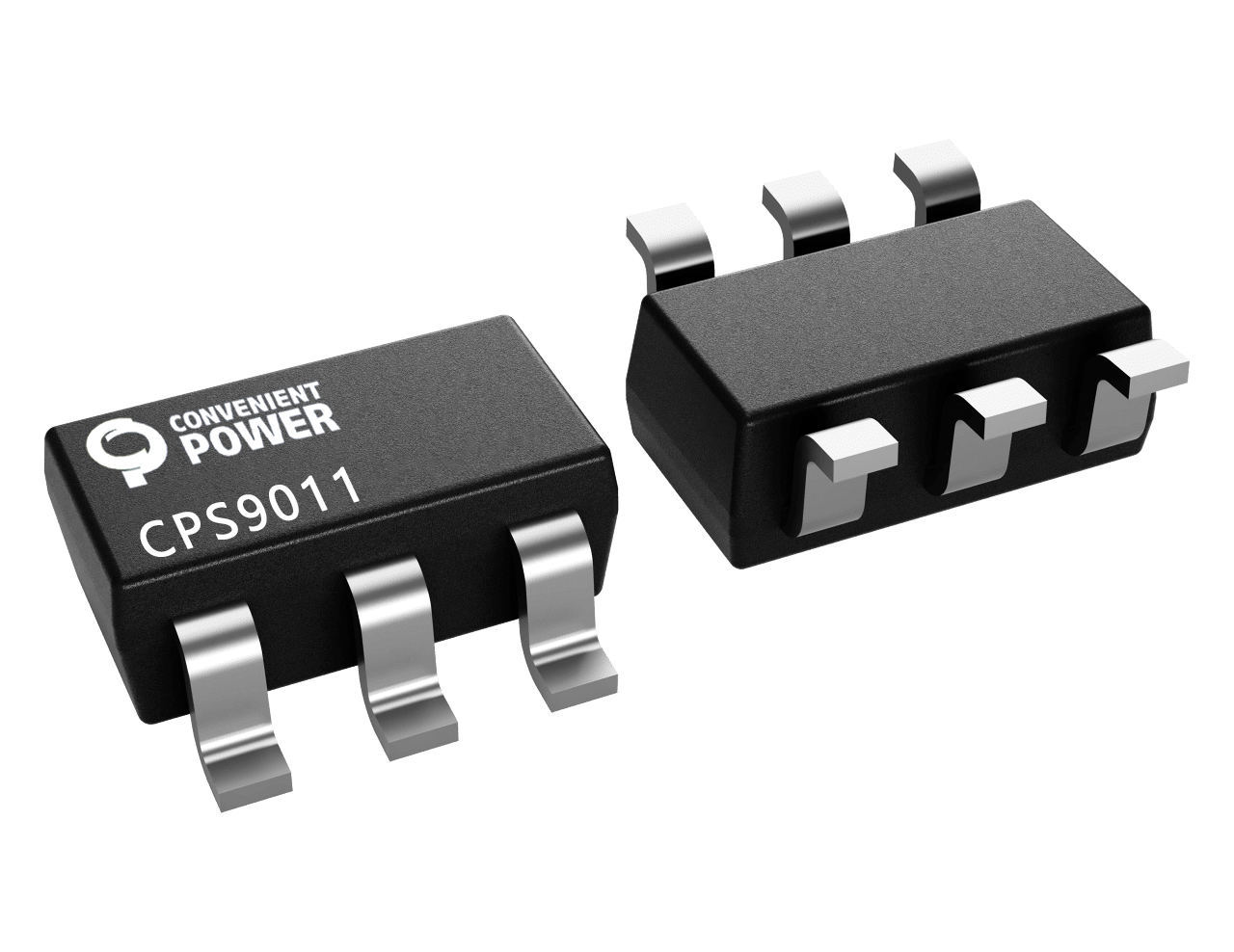

CPS9011A
Application
Battery Charger for Smart Phone and Tablet PCs
AC-DC Adapter
CPS9011X is an advanced PWM controller designed for high power density universal input offline flyback controllers. CPS9011X can work at QR mode at high line and CCM at low line. The CPS9011X also incorporates a proprietary valley-lockout circuitry and the valley-lockout number can be chosen by customer.
| Part Number | CPS9011A | |
|---|---|---|
| Standby Power | 75mW | |
| VDD_Max | 80V | |
| Control Mode | CCM/QR | |
| Fsw_Max | 85KHz CCM / 110K QR | |
| HV_Start Up | × | |
| X-Cap Discharge | × | |
| LPS | √ | |
| Protection | Ext-OTP、BI/BO、OVP、UVP、OLP、VDD UVLO/OVP etc. | |
| Package | SOT23-6 | |
77V VIN Overvoltage Protection
Multi-Mode PWM/PFM/Burst Control
Operating in Green Mode at Light and No Load condition
CCM Operating at low line
Valley-lockout Switching Operating at High Line
Frequency Jitter to Improve EMI
Current Mode Control with Internal Slope Compensation
Multiple Protections: VIN OVP/UVP/OVP/UVP, Brown-In/Out, SD, OLP, OCP and CS Open Protection
SOT23-6 Package
RoHS，Halogen-Free and Lead-Free Compliant
